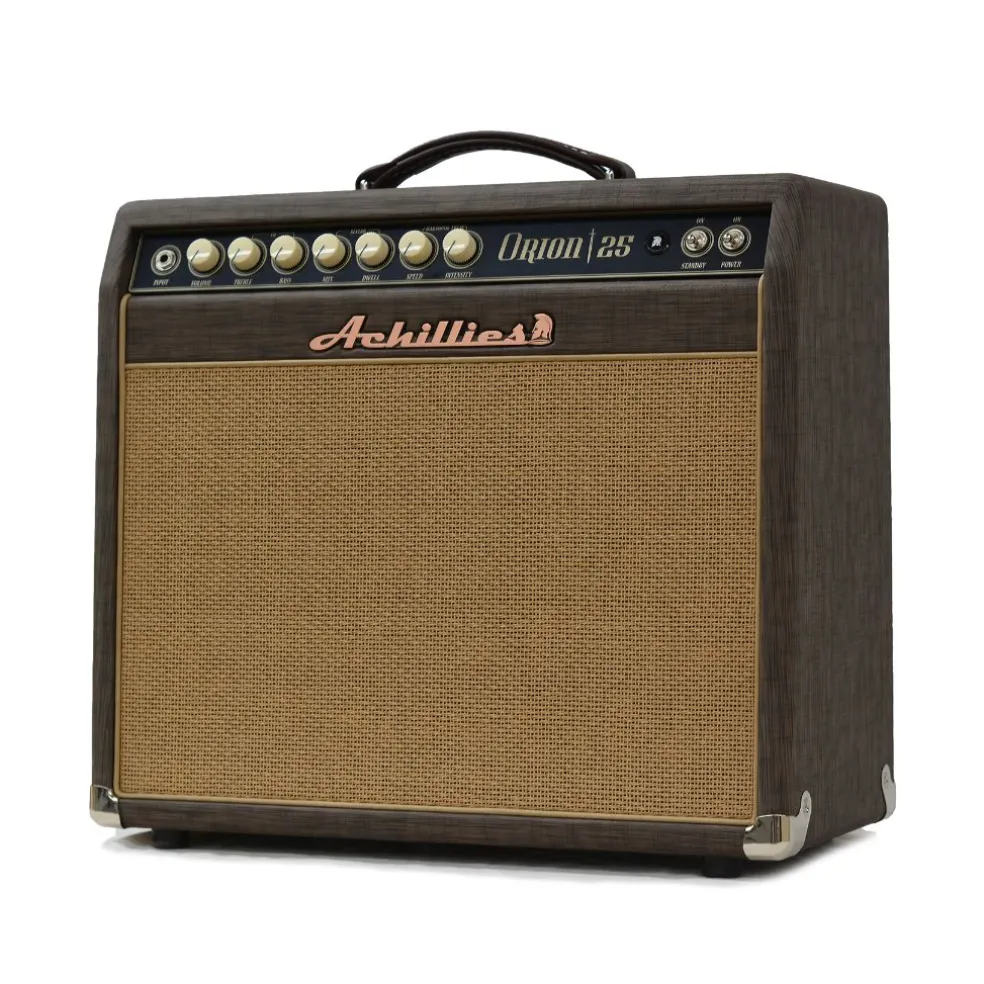

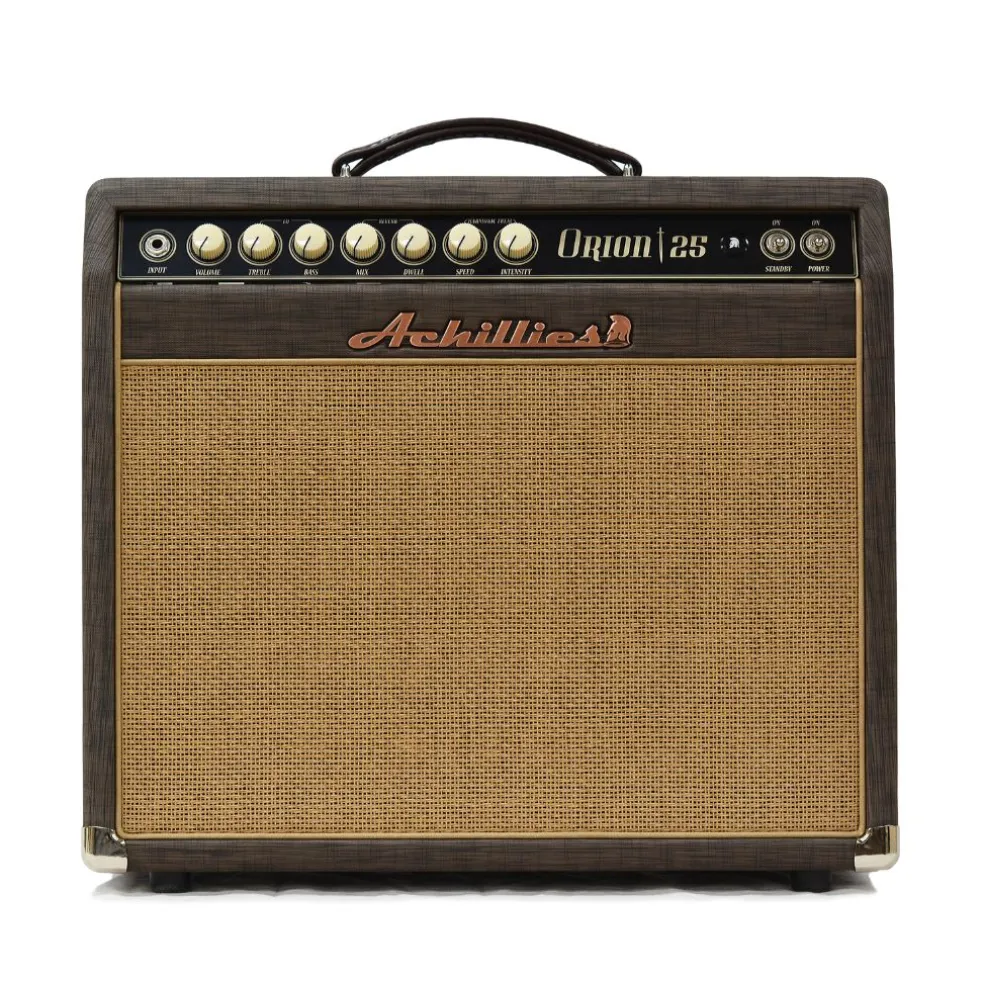

Achillies Orion 25 1×12" Jensen Blackbird 40 Combo Electric Guitar Amplifier

*** Demo Amp available to try at our showroom! ***

The hunt is over with the Achilles Amplification Orion 25!

If you’ve ever wanted a true top shelf mix of the defining features of classic vintage era Californian amps tonefully distilled into a knockout package, then check this out…

A balanced combination of a Brownface meets Blackface preamp for textured rich overdrive, into a Bassman style 6V6 poweramp section for even more signature compression.

This is offset with a beefed up power supply similar to a Super Reverb with a solid state rectifier for more tightness and top end clarity.

Add in a true 60’s style Tube Harmonic Pulse Tremolo (NOTHING has that whirling/flange effect!), with Reverb featuring a Dwell control to feed the Reverb into the signal.

Speaker are from the classic Jensen Blackbird 40 (deep lows, firm midrange and brilliant highs) for unrivalled brilliant dimension and clarity.

Finally, all hardwired construction using silver Teflon coated wire with USA made custom spec transformers ensures the practicalities are taken care of at the highest level.

Snare yourself a real prize with the Orion 25 – truly a hand selected mix of the defining features of a classic era.

Features

• Teflon Coated Silver Mil-Spec Wiring Throughout
• Custom Wound U.S.A Transformers
• Output Tubes: 2x 6V6
• Preamp Tubes: 6x 12AX7
• External Switching RCA Jack-Foot switch Included
• Cabinet Material: Premium Select Pine, Birch ply backs and speaker baffle
• Voicing: Clean/Breakup/Overdrive with Harmonic Tremolo and Reverb
• Aluminium Silk Screen Control Panels

Specs

• FR4 Eyelet Boards to tolerate heat and noise
• Accutronics Spring Reverb Tank
• Optional Line Voltage with wall plug ready for your country
• Speaker Output Impedance: Switchable 4Ω, 8Ω, 16Ω
• Extension speaker output jack wired in parallel
• Channel Controls:
• EQ: Volume, Treble, Bass
• Reverb: Mix, Dwell
• Harmonic Tremolo: Speed, Intensity
• Adjustable Fixed Bias
• Brass Ground Plate
• All Tube Spring Reverb
• True Tube-Driven Harmonic Tremolo Circuitry
• Half Power: 15w- 25w Switch at Rear
• Organic True Bypass Series Effects Loop. No passive components involved, so your tone remains the same.
• Achillies Black Gold Capacitors (Made in Germany)
• Sprague Orange Drop Capacitors
• 51 x 24.5 x 43.5cm (20″ x 9-5/8″ x 17-1/8”) 15 kg (33 lb)
