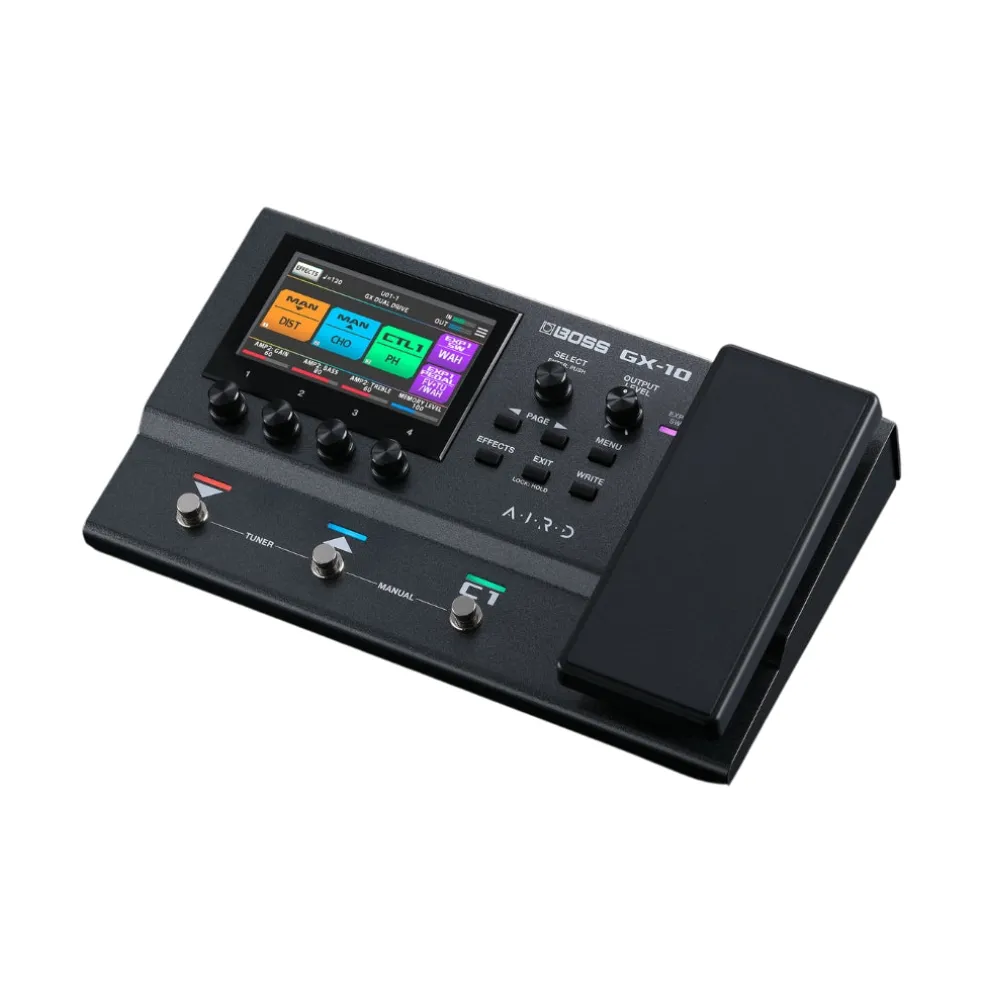

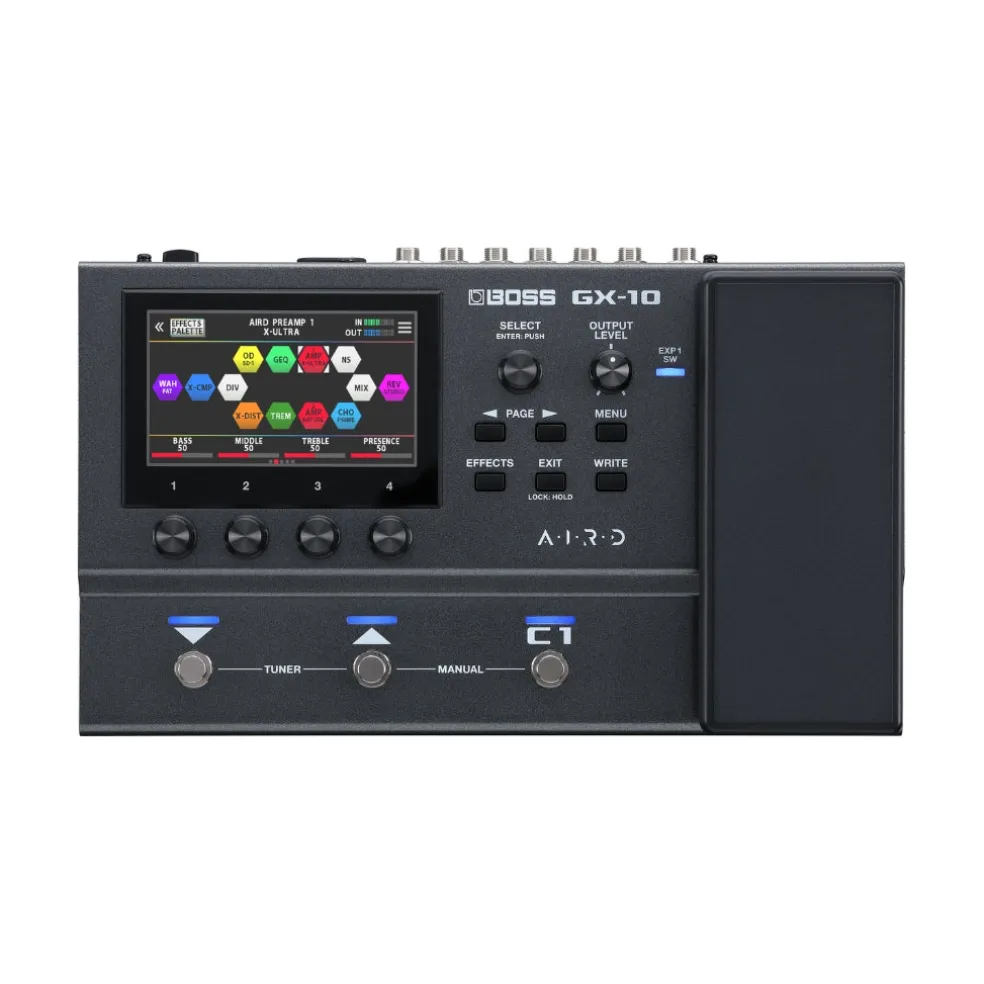

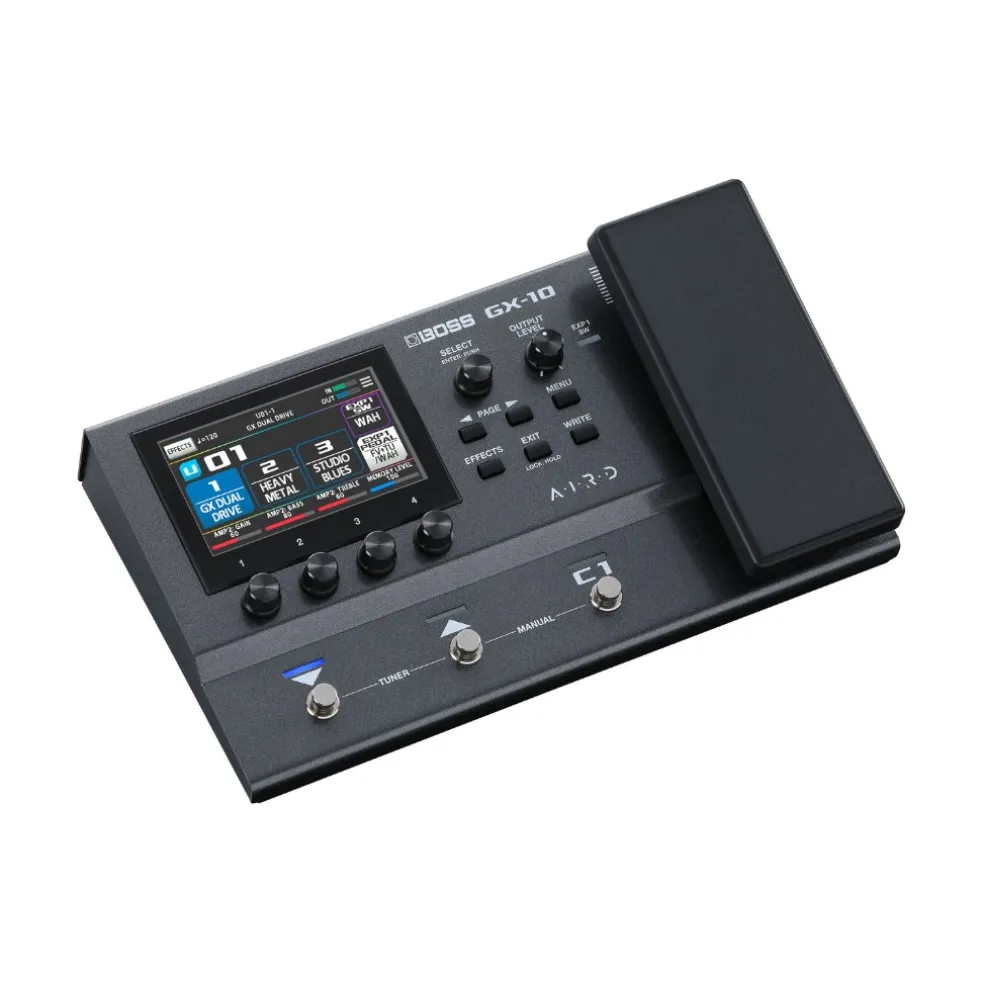

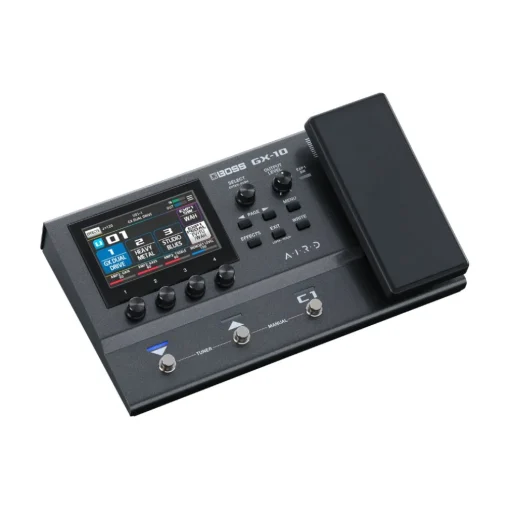

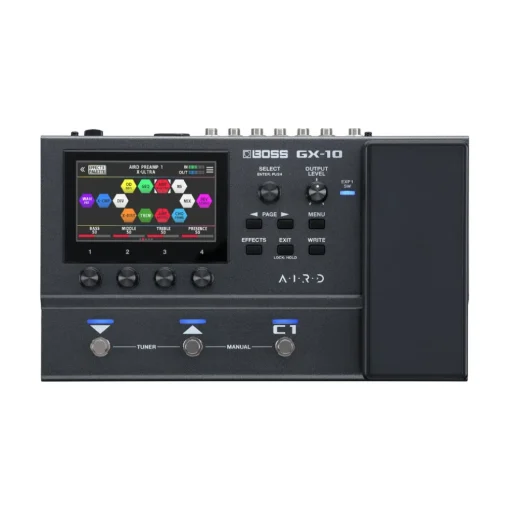

Boss GX10 Guitar Effects Processor

Colorful Tones, Portable Design

Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint. You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive color touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.

Features

• Compact amp/effects processor for guitar and bass
• The same sound engine and color touch display as the GX-100 in a portable, travel-ready design
• Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
• Authentic tube amplifier tone and touch response with AIRD technology
• 32 amplifier types and 170 BOSS effects
• Ultra-flexible amp/effect routing up to 15 assignable blocks
• Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Streamlined modern design with a rugged metal chassis
• Three footswitches with flexible control modes
• Onboard expression pedal with toe switch
• Connect up to two footswitches or an expression pedal for expanded control
• Send/return loop for external pedals
• Record and play tracks in music production software on a computer or mobile device* via a USB-C®
• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
• Download and share Livesets at BOSS Tone Exchange (compatible with GX-100 Livesets)
• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Specs

Sampling Frequency

• 48 kHz

AD Conversion

• 24 bits + AF method
• *AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

• 32 bits

Processing

• 32-bit floating point

Effects

• 170 Types

Maximum Number of Effects

• 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)

*depending on the circumstances

Memories

• 198 (User) + 99 (Preset)

Phrase Loop

• 38 sec. (MONO)
• 19 sec. (STEREO)

Tuner Internal Detection

• +/-0.1 cent

Nominal Input Level

• INPUT: -10 dBu
• RETURN: -10 dBu

Maximum Input Level

• INPUT: +7 dBu
• RETURN: +7 dBu

Input Impedance

• INPUT: 1 M ohm
• RETURN: 1 M ohm

Nominal Output Level

• OUTPUT (L/MONO, R): -10 dBu
• PHONES: -10 dBu
• SEND: -10 dBu

Output Impedance

• OUTPUT (L/MONO, R): 1 k ohm
• PHONES: 44 ohms
• SEND: 1 k ohm

Recommended Load Impedance

• OUTPUT (L/MONO, R): 10 k ohms or greater
• PHONES: 44 ohms or greater
• SEND: 10 k ohms or greater

Controls

• DOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,
• PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,
• EXP1 pedal

Display

• Color Graphic LCD (480 x 272 dots) Touch screen

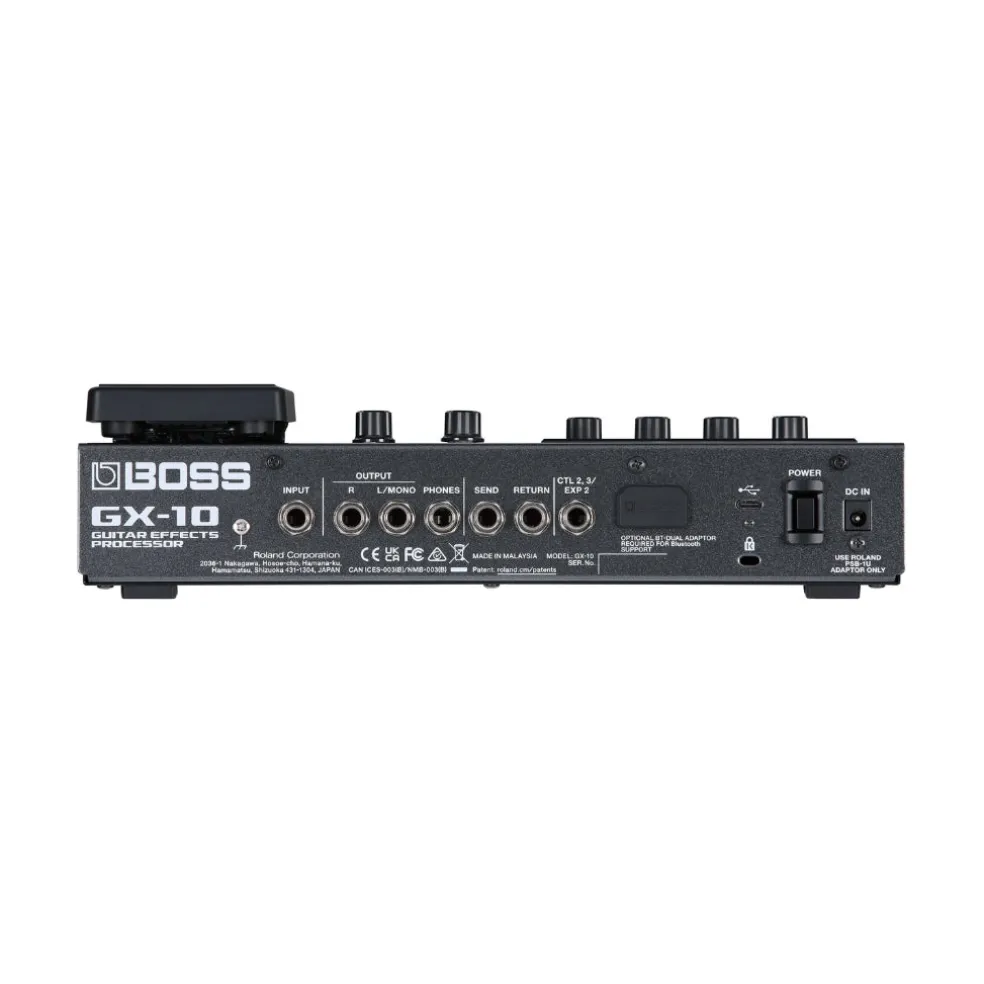

Connectors

• INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type
• CTL2,3/EXP2 jack: 1/4-inch TRS phone type
• USB COMPUTER port: USB Type-C(R)
• Bluetooth ADAPTOR connector: Dedicated connector
• DC IN jack

Power Supply

• AC adaptor

Current Draw

• 600 mA

Power consumption when in OFF mode (when the power automatically turns off): 0.0 W

Dimensions

• 300 (W) x 183 (D) x 74 (H) mm
• 11-13/16 (W) x 7-3/16 (D) x 2-15/16 (H) inches

Maximum height

• 300 (W) x 183 (D) x 96 (H) mm
• 11-13/16 (W) x 7-3/16 (D) x 3-3/4 (H) inches

Weight

• 2.2 kg
• 4 lbs 14 oz

Accessories

• AC adaptor (PSB-1U + AC Cord Set)
• Owner’s manual
• Leaflet “USING THE UNIT SAFELY”

Options (sold separately)

• Footswitch: FS-5U, FS-5L, FS-6, FS-7
• Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
• Bluetooth(R) Audio MIDI Dual Adaptor (Model BT-DUAL)
• Wireless MIDI Expression Pedal: EV-1-WL
• Wireless Foot Switch: FS-1-WL

*0 dBu = 0.775 Vrms
