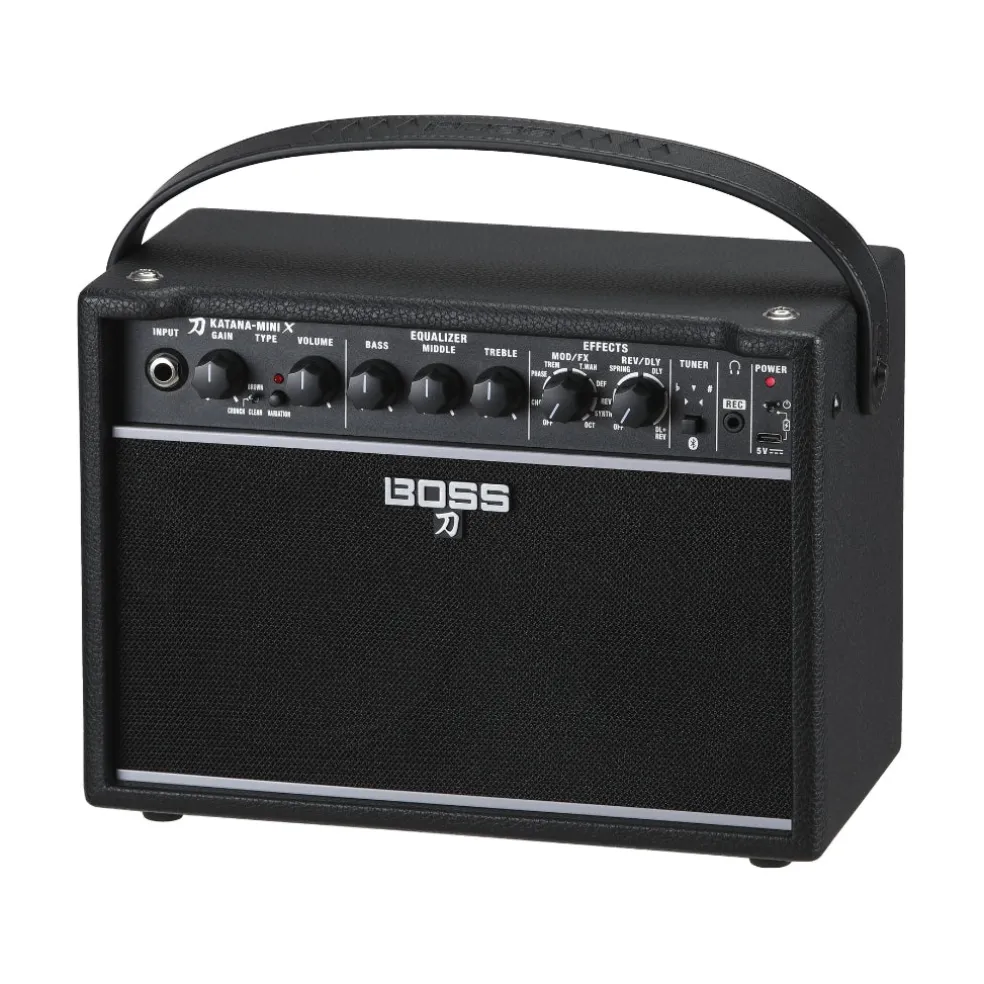

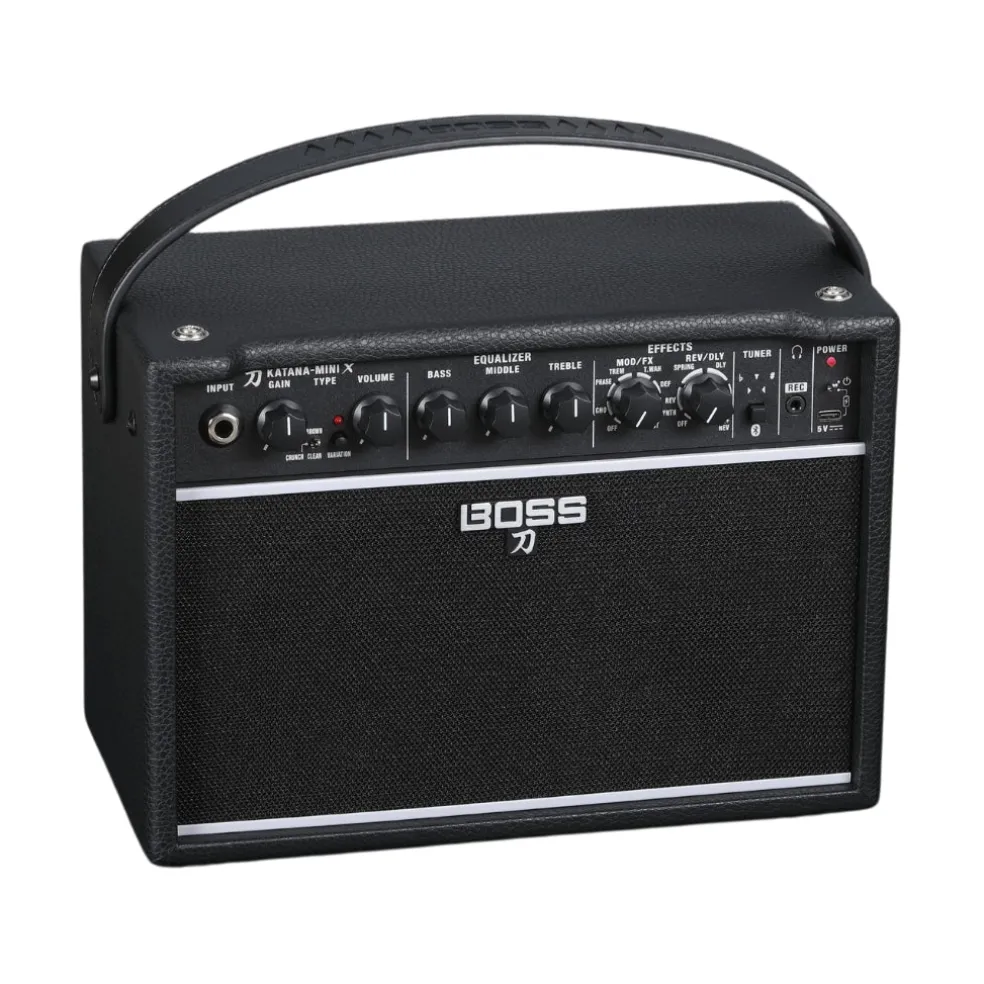

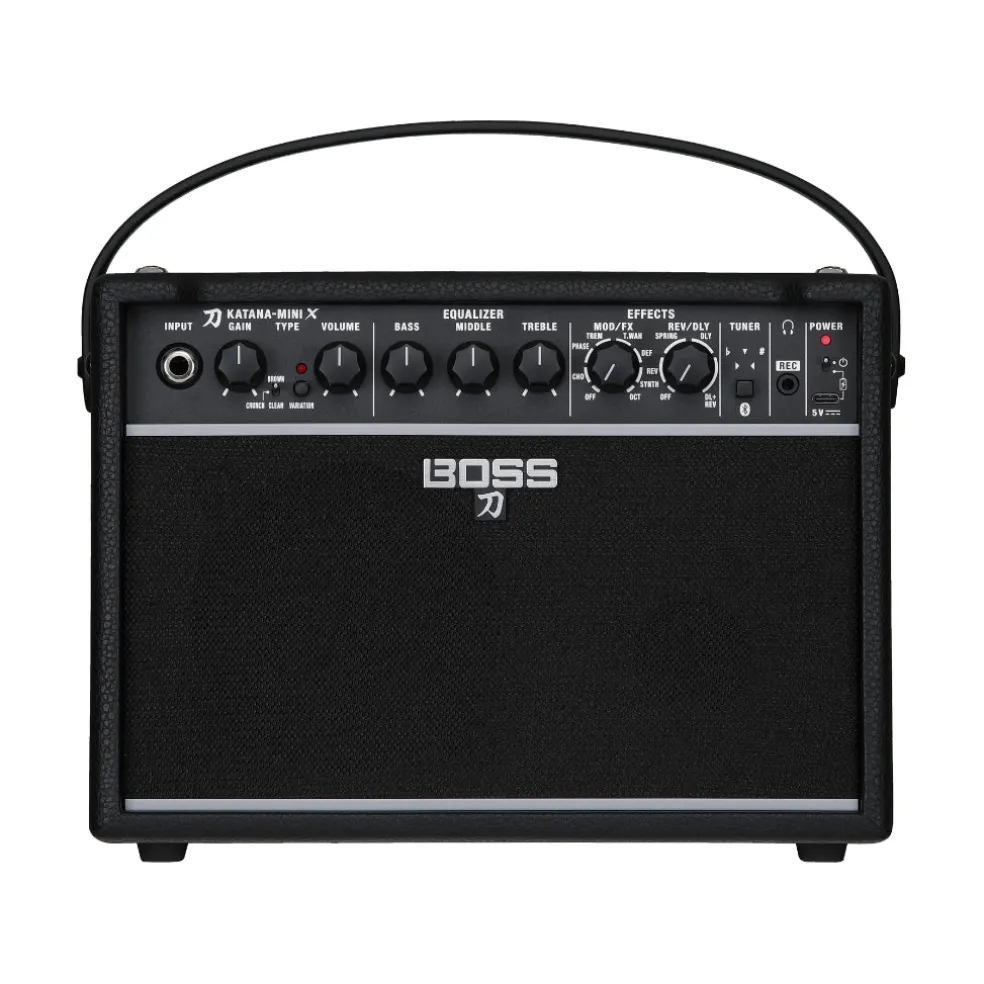

BOSS Katana-Mini X Guitar Amplifier

Inspiring Quality, Minimal Design

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth for streaming music from your smartphone.

Features

• Inspiring Katana tone in a 10-watt mini amp
• Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
• Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
• Three versatile amp types: Brown, Crunch, and Clean
• Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
• Three-band analog tone stack for smooth sound adjustment
• Two independent effect sections with 10 total effect types to choose from
• Intuitive panel with front-facing controls
• Guitar/bass tuner with panel indicators
• Wirelessly stream audio from a mobile device via onboard Bluetooth
• Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
• Rechargeable battery with up to 10 hours of continuous playing time*
• USB-C® jack for charging (USB Type-C to Type-A charging cable included)

Specs

Rated Power Output

• 10 W

Nominal Input Level

• INPUT: -10 dBu (1 M ohm)

Speaker

• 12 cm (5 inches)

Controls

• POWER switch
• TYPE switch
• VARIATION button
• GAIN knob
• VOLUME knob

[EQUALIZER]

• BASS knob
• MIDDLE knob
• TREBLE knob

[EFFECTS]

• MOD/FX knob
• REV/DLY knob
• [TUNER/Bluetooth]
• TUNER/Bluetooth button

Indicators

• POWER
• VARIATION
• TUNER/Bluetooth

Connectors

• INPUT jack: 1/4-inch phone type
• PHONES/REC jack: Stereo miniature phone type
• 5 V (DC IN) port: USB Type-C(R)

Bluetooth

• Profile Support: A2DP (Audio)

Power Supply

• Rechargeable nickel-metal hydride battery

Current Draw

• 1500 mA

Expected battery life under continuous use

• Approximately 10 hours
• * These figures will vary depending on the actual conditions of use.

Battery charging time

• Approximately 3 hours
• *To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher).

Dimensions (excluding strap)

• 287 (W) x 145 (D) x 200(H) mm
• 11-5/16 (W) x 5-3/4 (D) x 7-7/8 (H) inches

Weight (including strap)

• 2.7 kg
• 6 lbs

Accessories

• Leaflet “Read Me First”
• USB Type-C(R) to USB Type-A cable for charging

* 0 dBu = 0.775 Vrms
