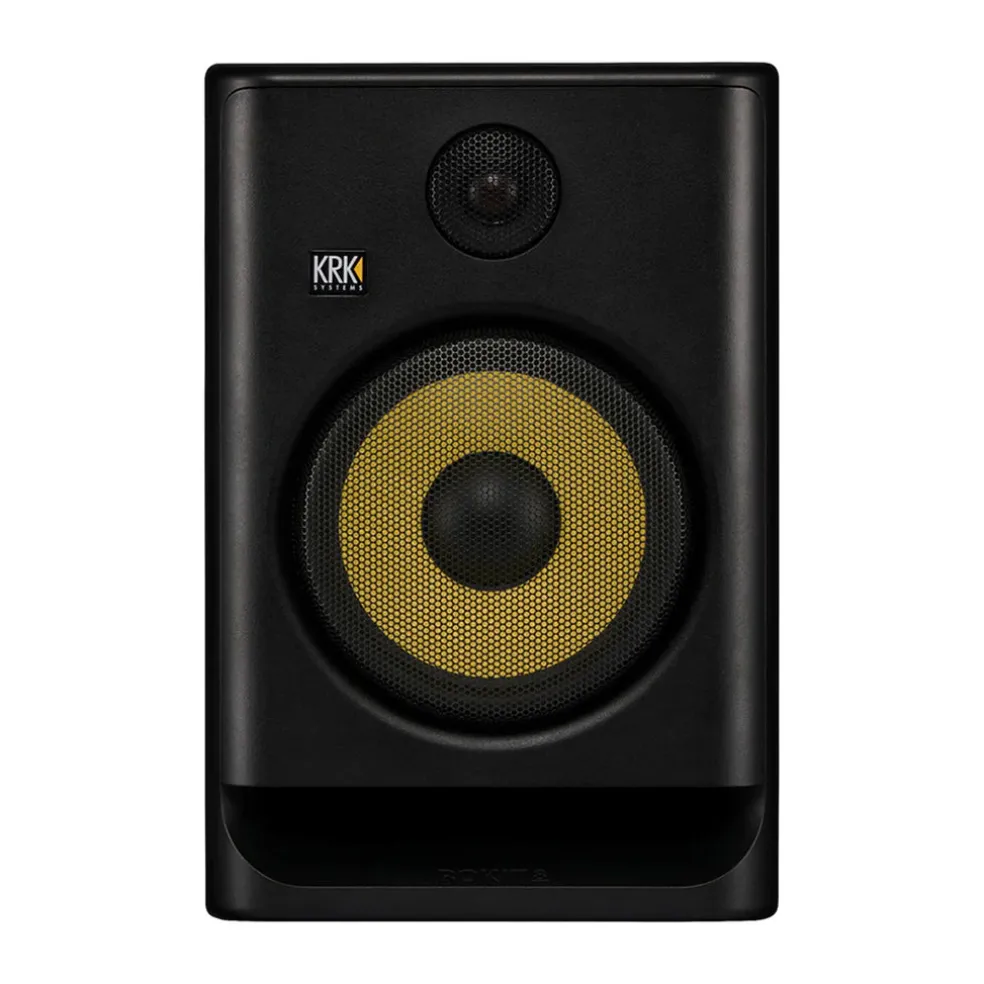

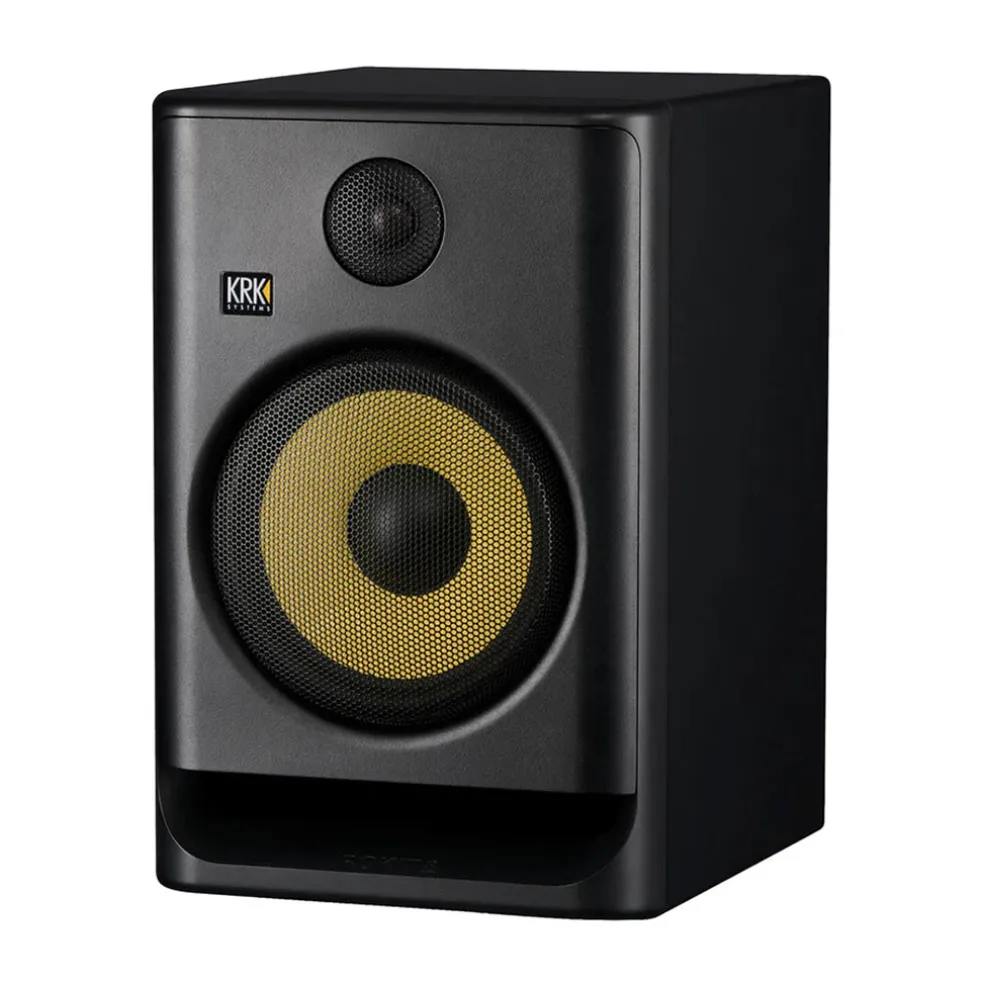

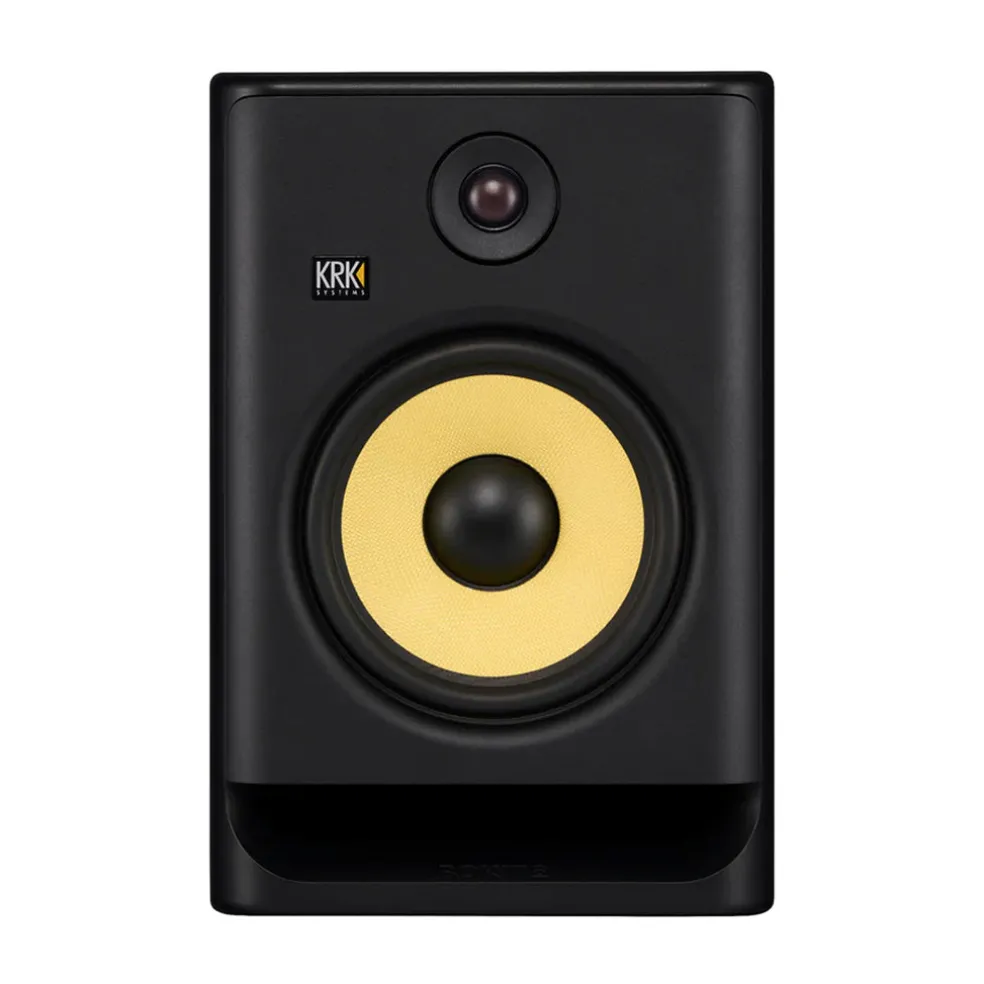

KRK ROKIT Gen5 Studio Monitor 5" Class D Powered; Kevlar Drivers; Onboard DSP – Single

The KRK Systems ROKIT 5 Generation Five is the most advanced studio monitor in its class. Whether you’re working on a chart-topping hit, a film score, or a personal project, they provide the tools you need to capture every nuance of your sound with astonishing clarity. Part of the Fifth Generation of KRK ROKIT Studio Monitors, along with the ROKIT 7 Generation Five and ROKIT 8 Generation Five, their onboard DSP technology provides three distinct Voicing Modes. Mix Mode, with flat frequency and phase response, is best for mixing, mastering, and critical listening. Create Mode is a more inspirational voicing best used for writing, producing, and casual listening. Focus Mode is a mid-focused voicing for critical analysis of the midrange band where vocals and most instruments have the most energy. The three Mix Modes eliminate the need for separate sets of monitors for different tasks. It’s like having three pairs of monitors in one. The ROKIT 5 Generation Five also features 25 boundary and tuning EQ combinations that help minimize and correct problems in your acoustic environment, and with the aid of the free KRK App, they make setting up your recording environment easy and precise.

The ROKIT 5 Generation Five is fitted with a 5” woven Kevlar® aramid fiber cone woofer for superior damping and modal breakup control. The 1” tweeter benefits from a highly damped acoustic silk dome diaphragm to smoothly extend the frequency range up to 40 kHz. For maximum transient response and dynamics reproduction, bi-amplified Class D power amplifiers drive the transducers evenly and more efficiently at reduced operating temperatures to ensure audio integrity during long work sessions.

The world’s leading studio monitor manufacturer, KRK’s sonic accuracy and performance have made them the choice of professionals worldwide for over 35 years. Experience them for yourself, and you’ll agree–the KRK Systems ROKIT 5 Generation Five continues that tradition of sonic excellence.

Features

• Three Voicing Modes – Mix, Focus, and Create – for 3-in-1 monitoring flexibility
• 25 boundary and tuning EQ combinations to help minimize and correct problems in your acoustical environment
• Custom-designed Class D power amplifiers for better audio integrity and reduced operating temperature
• 5 Woven Kevlar® aramid fiber woofer for tight and accurate low and low-mid performance
• New 1 silk dome tweeter design for improved high-mid, high frequency, and phase performance
• Low Diffraction Baffle Design for lower distortion and better stereo imaging
• Includes two magnetic faceplates for protective grille or no-grille flexibility
• Optimized front-ported bass reflex enclosure for improved low-frequency performance

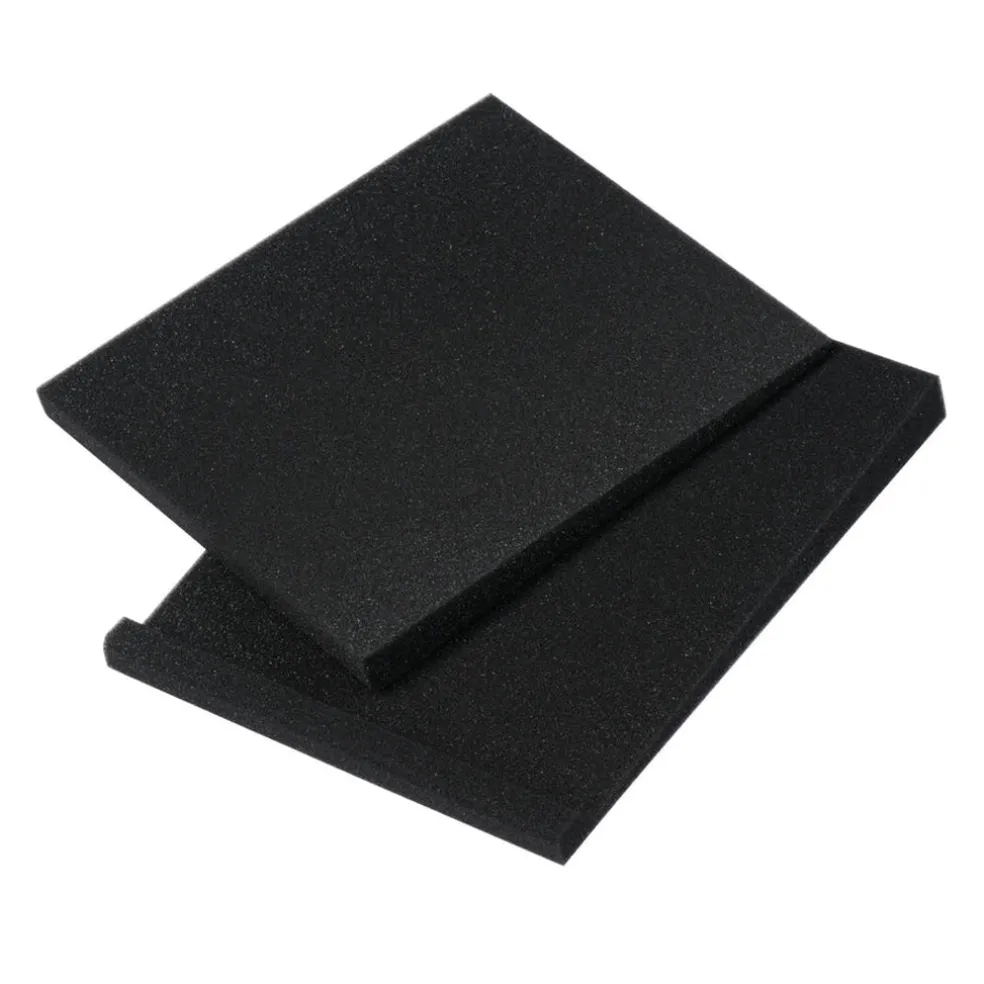

• Acoustic foam wedge isolation pads to minimize resonance and support proper set-up positioning
• Integrated mounting points for use with optional KRK mounting brackets, perfect for immersive audio studio installations

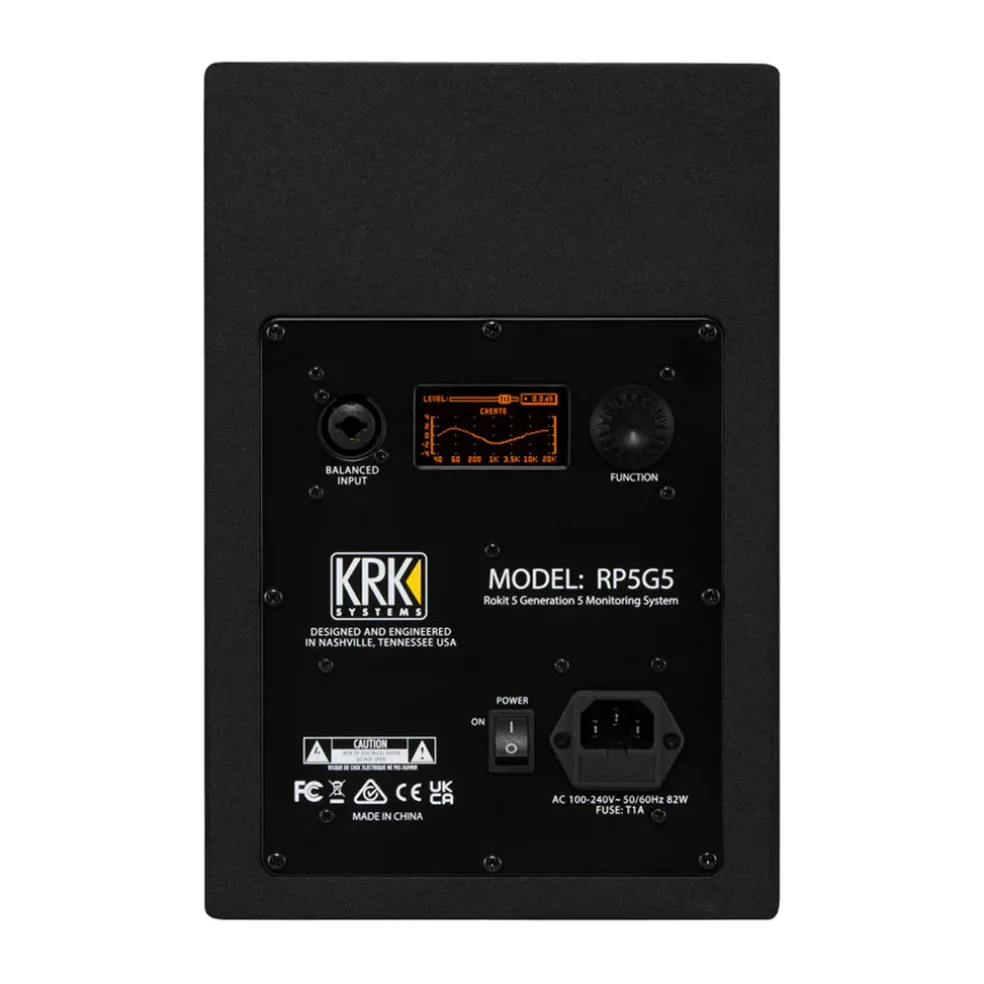

• XLR, 1/4” TRS Combo analog input for wide compatibility with audio devices
• Universal voltage, switching mode power supply for use in all global regions
• Use with the KRK Audio Tools App: Acoustic Real-Time Room Analyzer and EQ Recommendation tool to help set the monitor for better, more accurate monitoring and faster mixing

Specs

• Configuration: 2-Way Bass Reflex
• System Type: Active Studio Monitor
• Low-Frequency Driver: Woofer, 5-inch, woven Kevlar® aramid fiber cone, ferrite magnet
• High-Frequency Driver: Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
• Frequency Response: (+/- 3 dB) 54 Hz – 30 kHz
• Frequency Range: (+3/-10 dB) 43 Hz – 40 kHz
• Crossover Frequency: 2.27 kHz
• Amplifier Configuration: Bi-amplified (Class D)
• HF Amp Power Output: 20 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
• LF Amp Power Output: 35 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
• Total Power: 55 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
• Total Dynamic Power Output: 130 Watts (Rated Dynamic Power Output is measured as instantaneous peak power at 10% THD+N)
• Max SPL: 104 dB (Max SPL is calculated as a function of the driver sensitivity (1W @ 1M) and the Dynamic Power rating)
• Coverage Angles: 155° Horizontal x 126° Vertical (Coverage Angles are averaged -6 dB down points from 900 Hz to 9 kHz)
• Analog Input Connector: Balanced XLR / 1/4 TRS Combo
• SNR (Signal to Noise Ratio): >101.5 dB (Low Sensitivity setting, balanced), >94 dB (High Sensitivity, unbalanced)
• AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60 Hz
• Fuse Type: 5×20 mm T1A 250V
• Enclosure Construction: PVC Vinyl Wrapped MDF
• Baffle Construction: Structurally Reinforced High Impact Polystyrene
• Product Dimensions: (H x W x D) 11.34” (288 mm) x 7.52” (191 mm) x 9.53” (242 mm)
• Product Weight: 10.91 lbs. (4.95 Kg.)
• Packaged Weight: 14.33 lbs. (6.5 Kg.)
• Packaged Dimensions: (H x W x D) 15.75” (400 mm) x 10.24” (260 mm) x 12.6” (320 mm)
