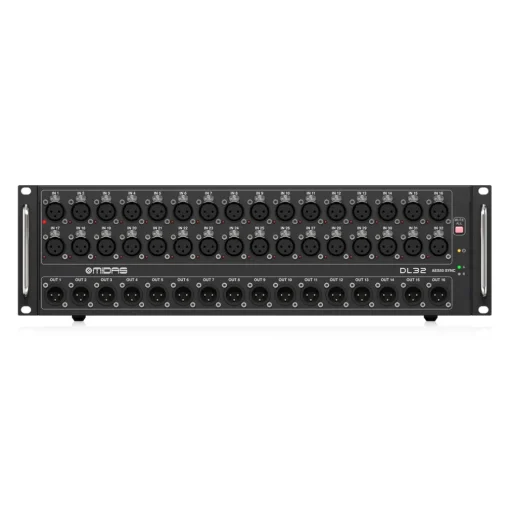

Midas DL32 Stagebox 32in/16out

32 Input, 16 Output Stage Box with 32 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

Features

• 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
• Two AES-3 ports (AES/EBU),e.g. for directly connecting PAsystem controllers with digital inputs
• Remote operation up to 100 m via CAT5/5e cable
• MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Mute-All-Inputs function for quietly patching any inputs on stage
