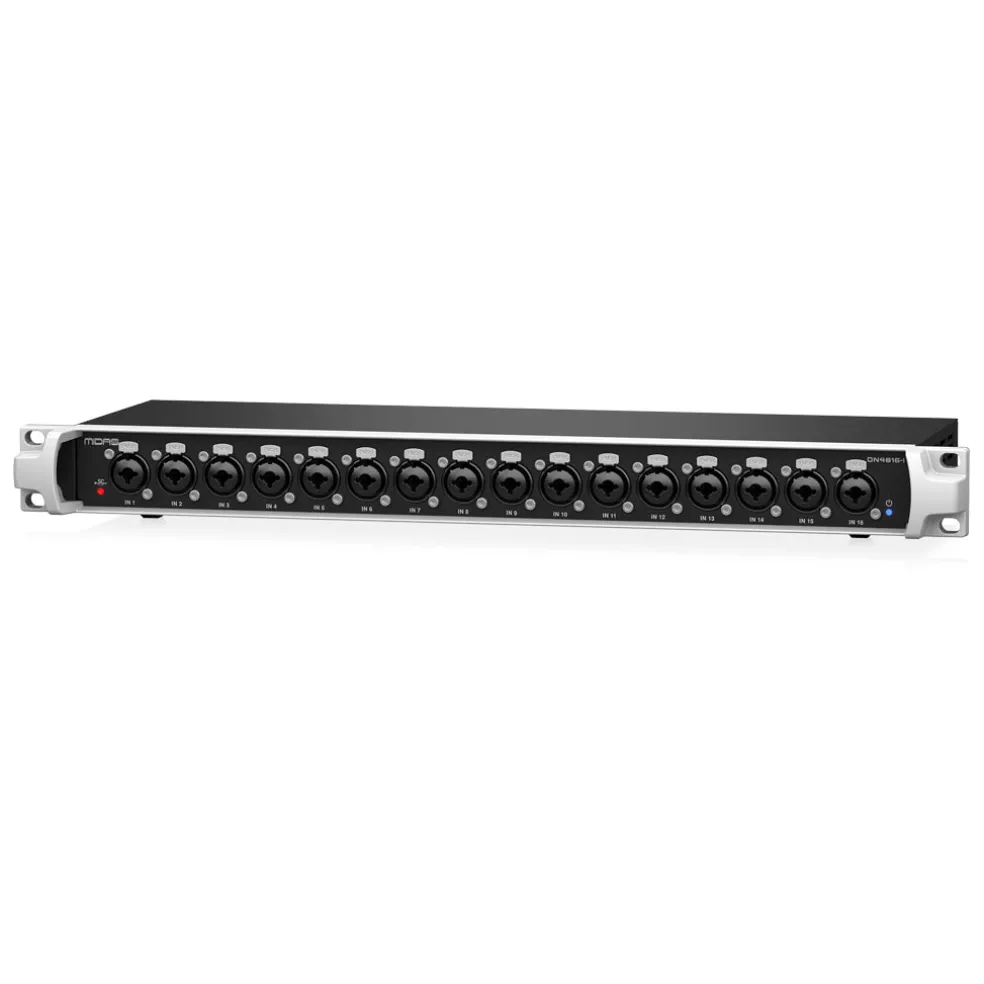

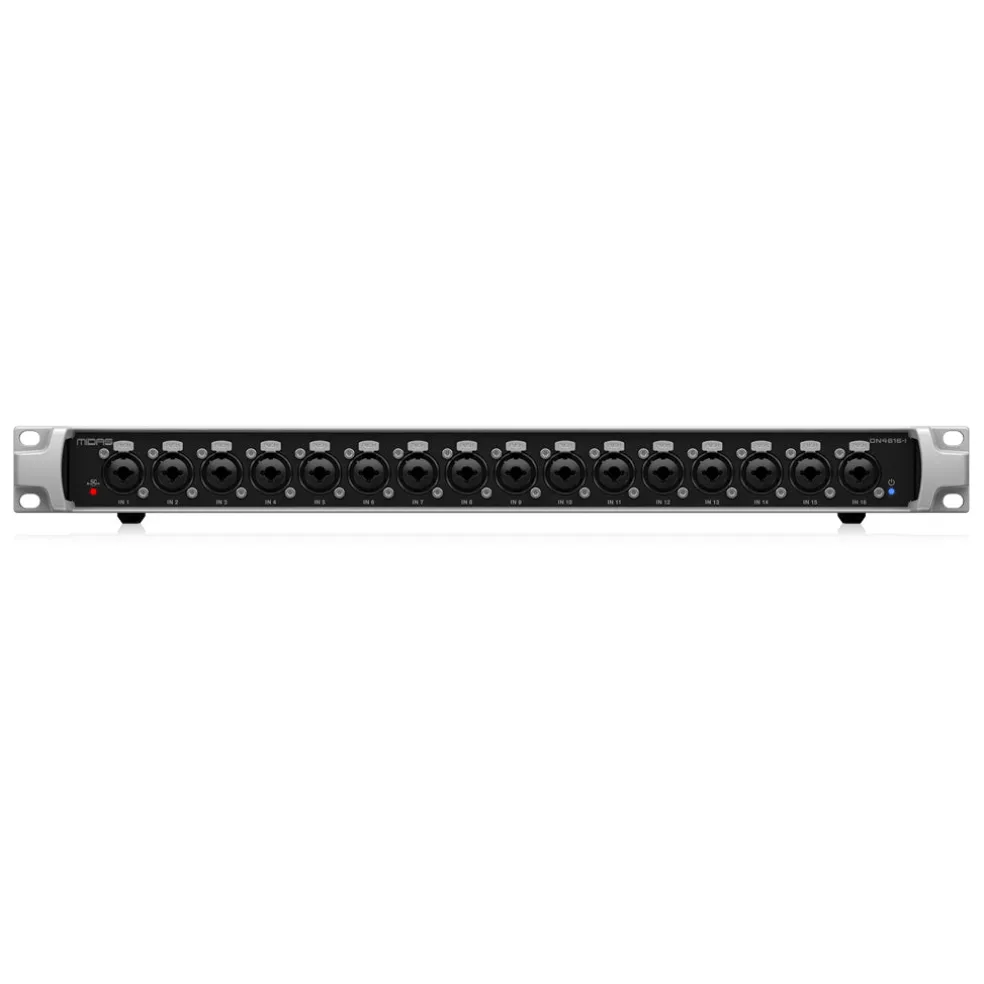

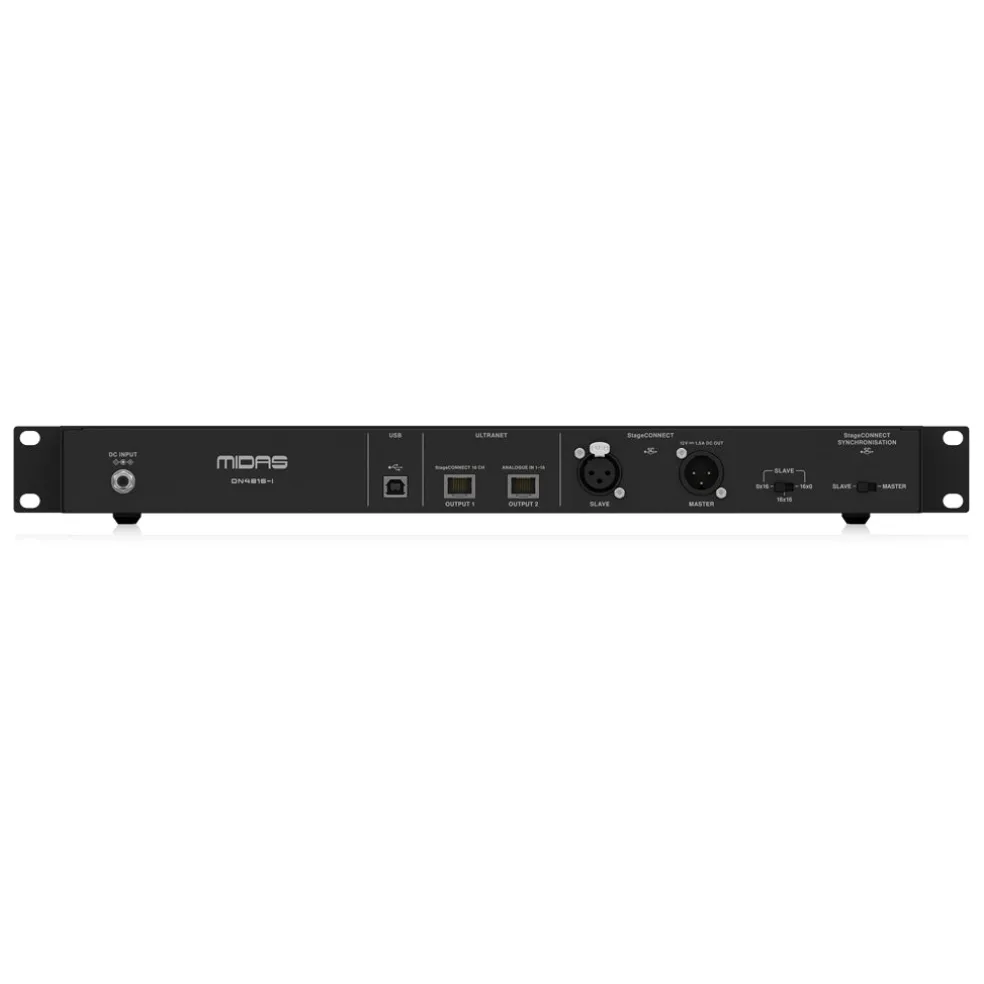

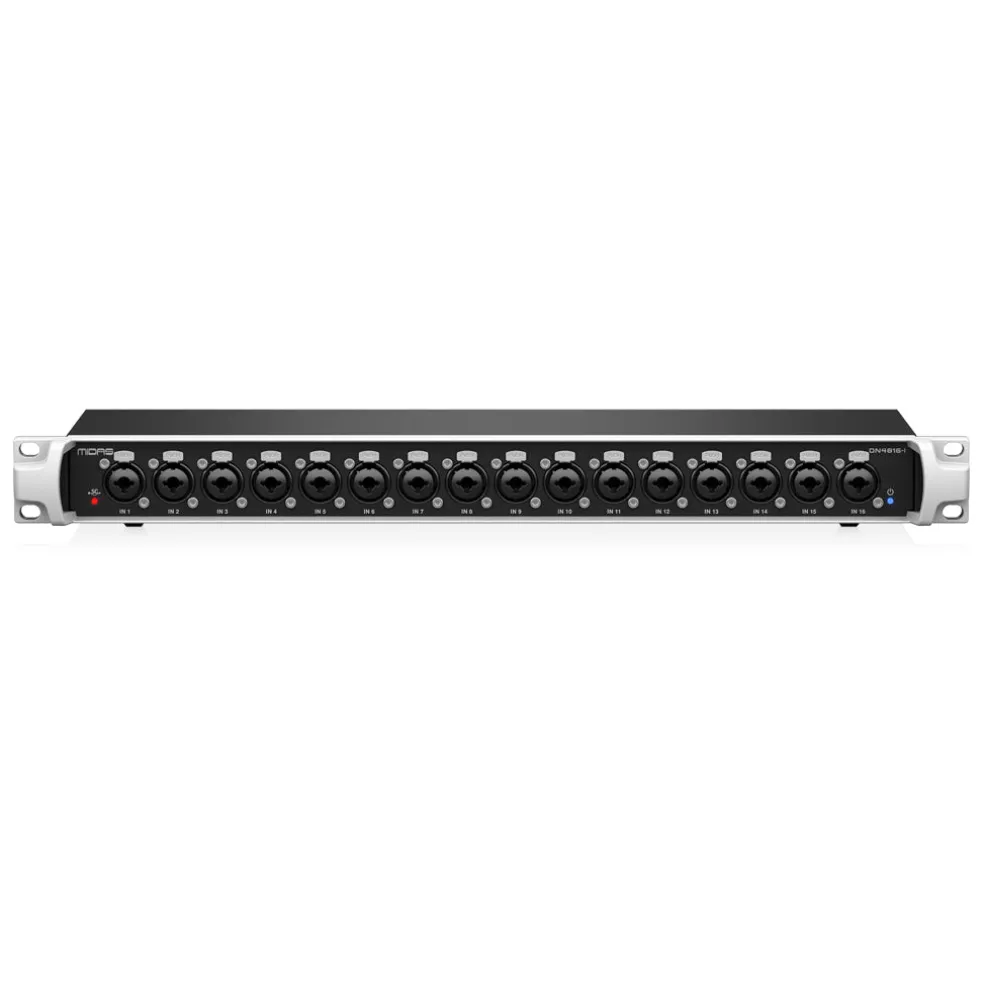

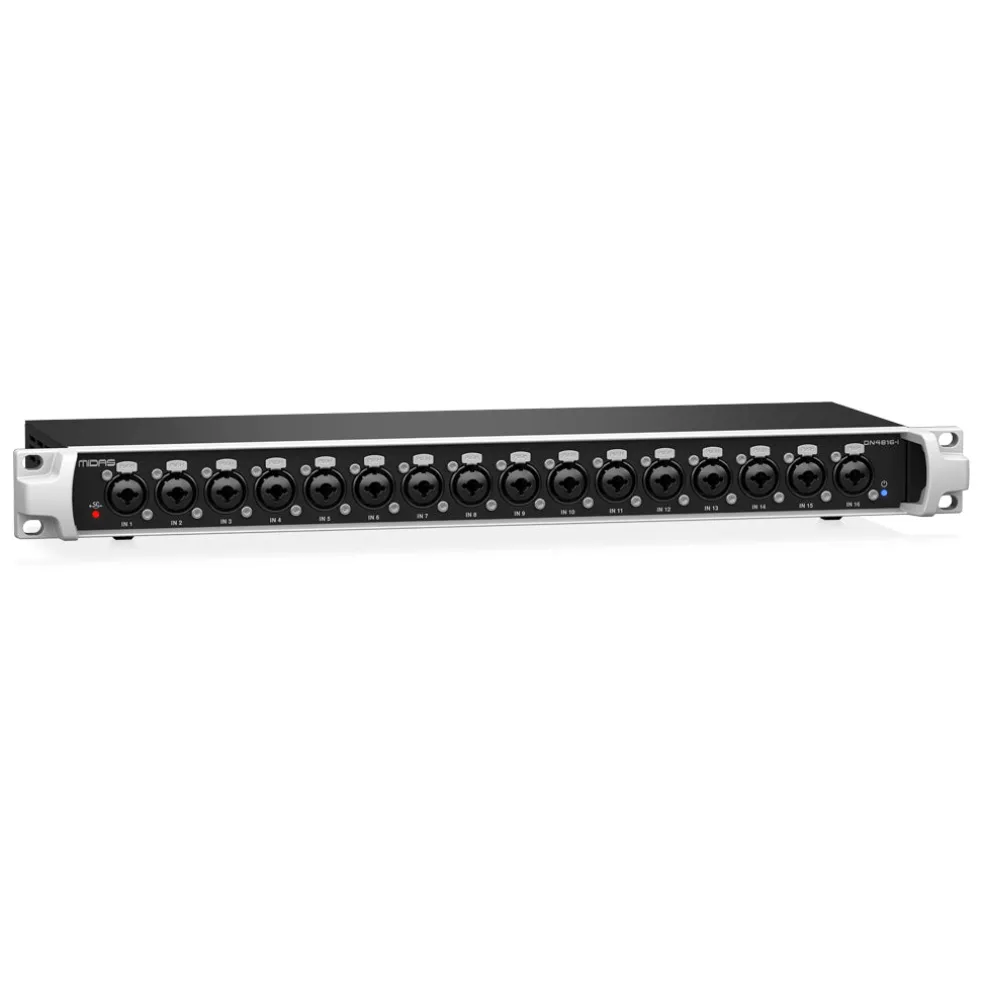

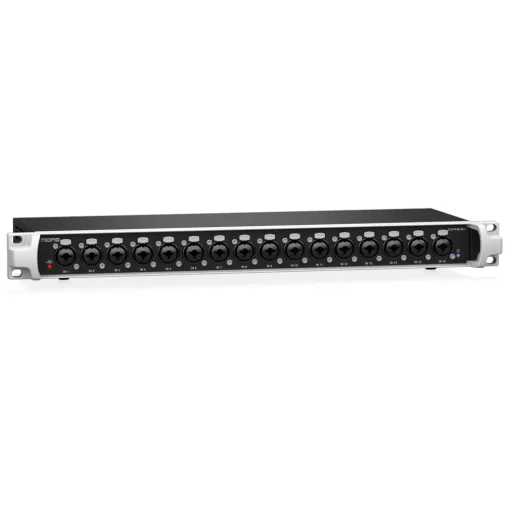

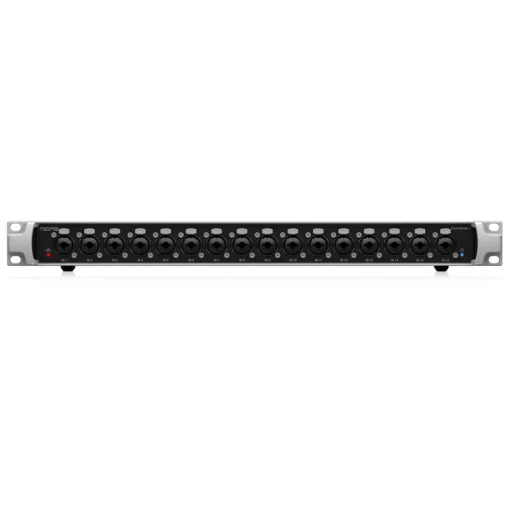

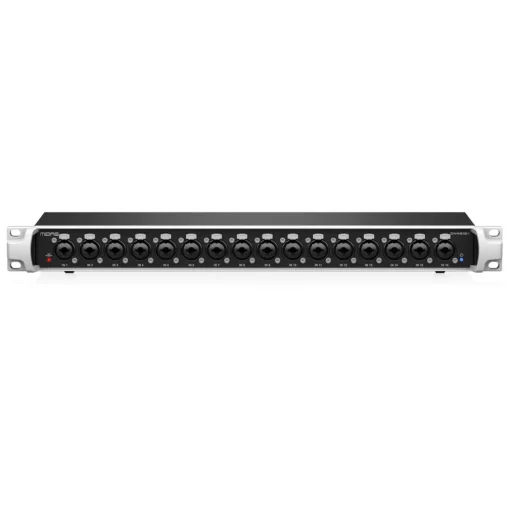

Midas DN4816-I Stageconnect Interface 16in

Bus-Powered StageConnect Interface with 16 Analogue Outputs and Ultranet In/Out

The DN4816-I is the perfect solution for connecting additional line inputs to your monitor or FOH console. It provides 16 analogue inputs to connect wireless receivers or other external audio players.

The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.

Features

• Breakout box with 16 balanced XLR line inputs for StageConnect and Behringer Ultranet systems
• Can be used as analogue input box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers such as P16 personal monitoring mixers
• StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
• Two units can be cascaded for a total of 32 low-latency analogue line inputs feeding the StageConnect bus
• Flexible connectivity on stage and between side racks using any balanced microphone cable
• Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power
