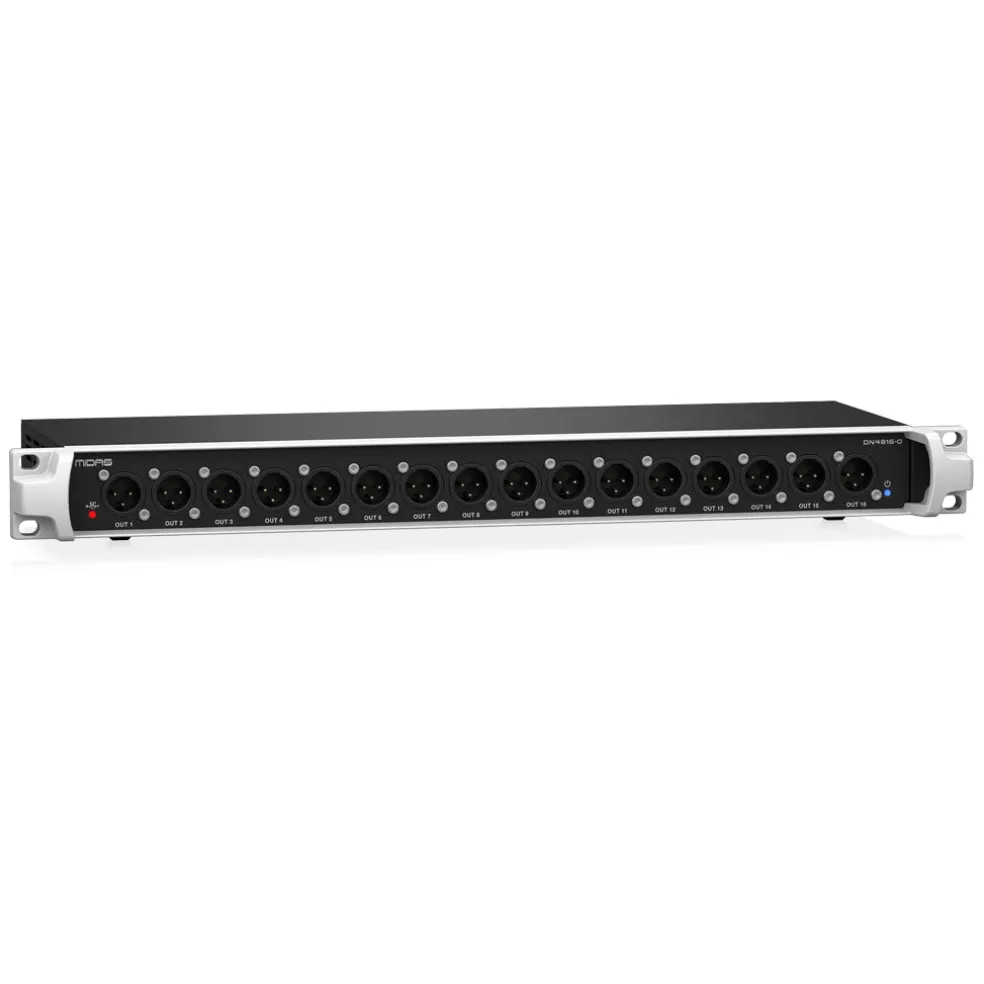

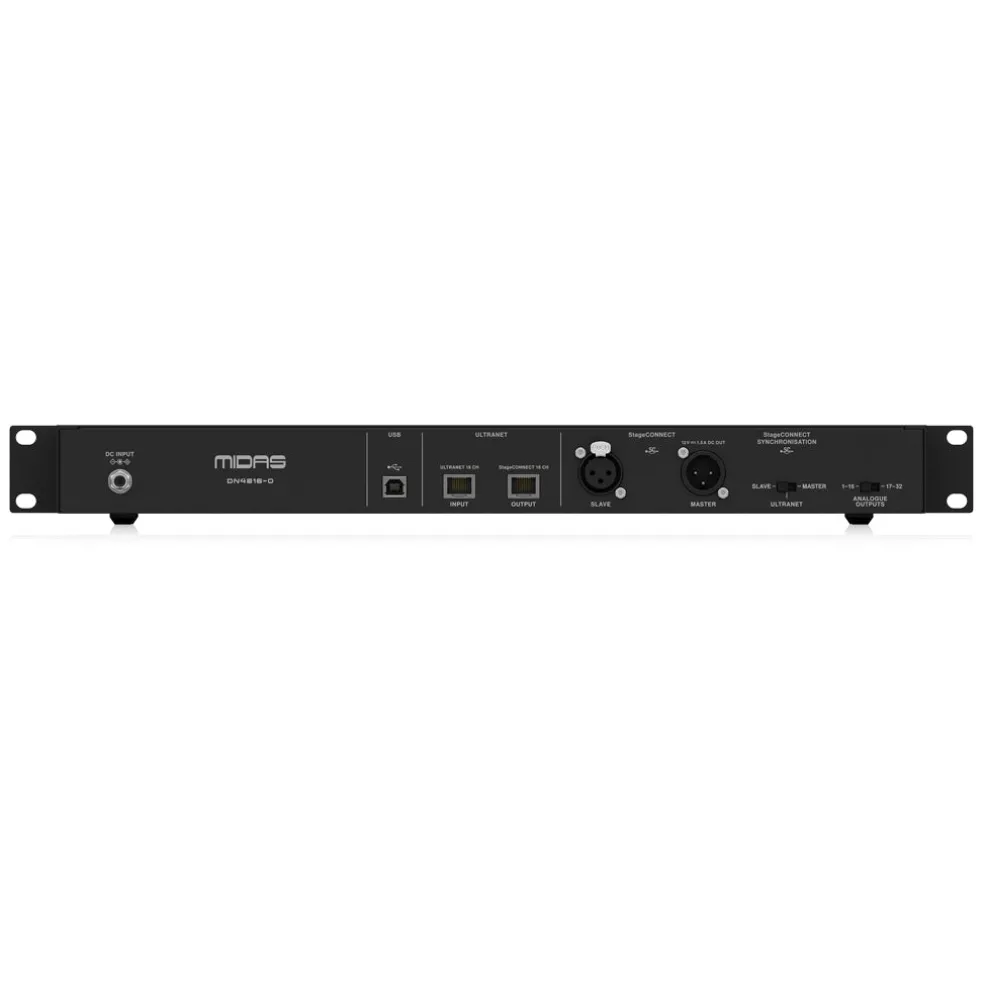

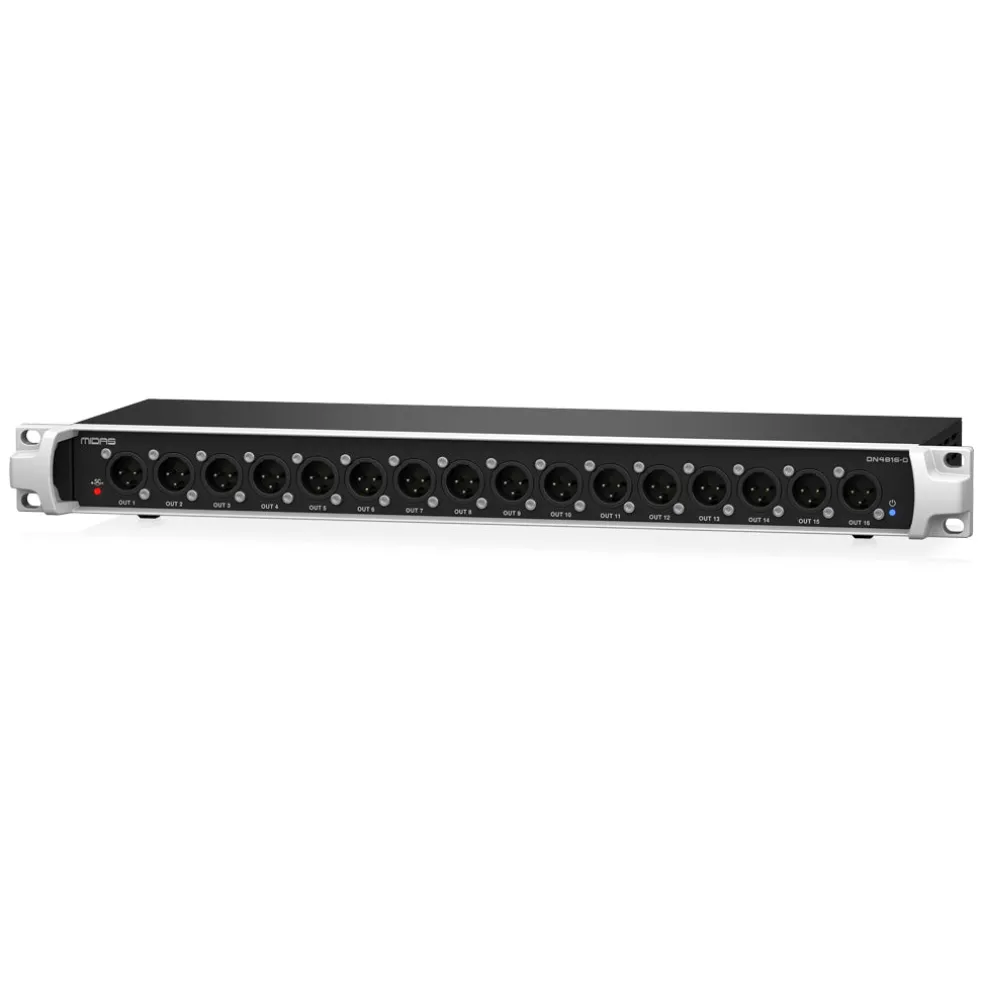

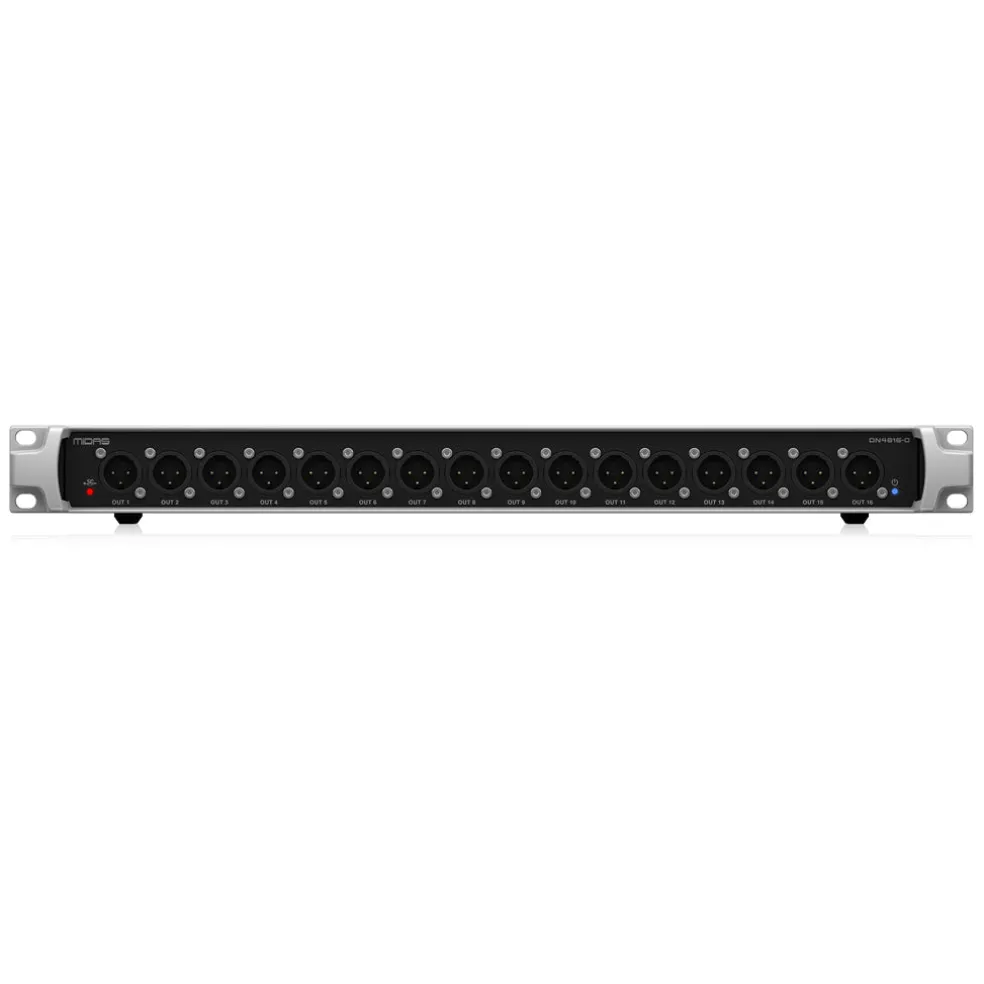

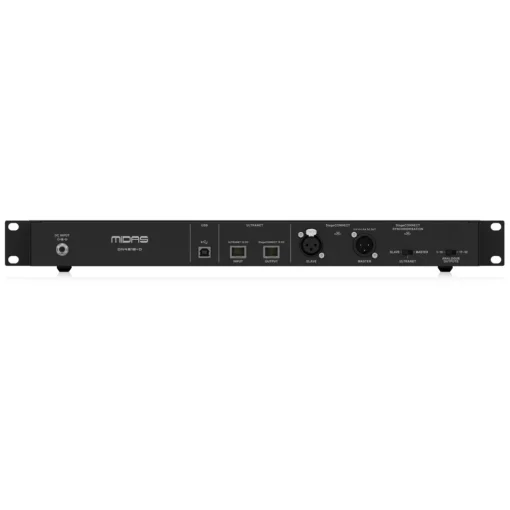

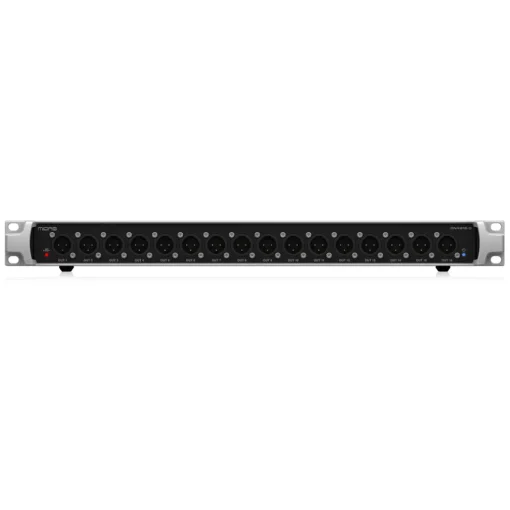

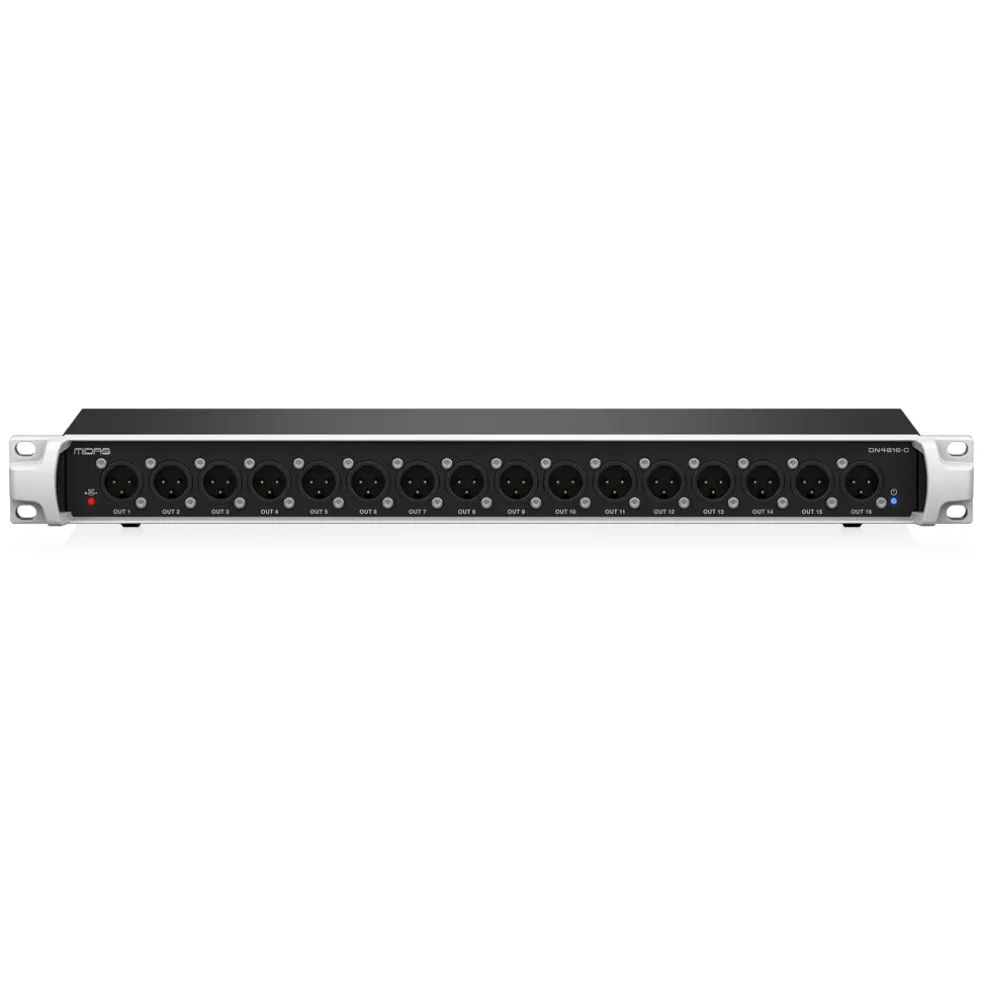

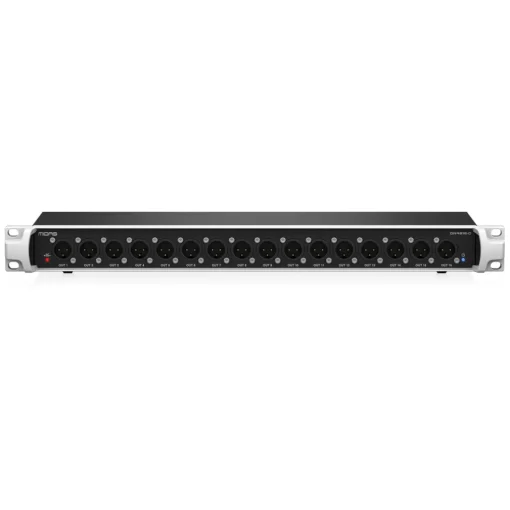

Midas DN4816-O Stageconnect Interface 16out

Bus-Powered StageCONNECT Interface with 16 Analog Outputs and Ultranet In/Out

The DN4816-O is the perfect solution for connecting additional line outputs to your monitor or FOH console. It provides 16 analog outputs (e.g., to connect wireless transmitters for in-ear monitoring). Additionally, it provides an Ultranet input, that can be used to forward Signals from an AIR mixer via StageConnect.

The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.

Features

• Breakout box with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems
• Analog output box for other StageConnect devices, Midas HUB4 and Behringer WING or Ultranet transmitters such as Midas MR18/M32 and DL16/DL32 stageboxes
• StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
• Two units can be cascaded for a total of 32 low-latency analogue outputs fed from a single StageConnect source
• Flexible connectivity on stage and between side racks using any balanced microphone cable
• Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power
• Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
• Operates in Master mode, or as Slave synchronised to StageConnect or Ultranet input streams
• Ultranet output for feeding Turbosound iQ speaker systems and Behringer P16 personal monitoring directly from StageConnect bus
• External power supply for standalone use and offering remote power on the StageConnect Master output
