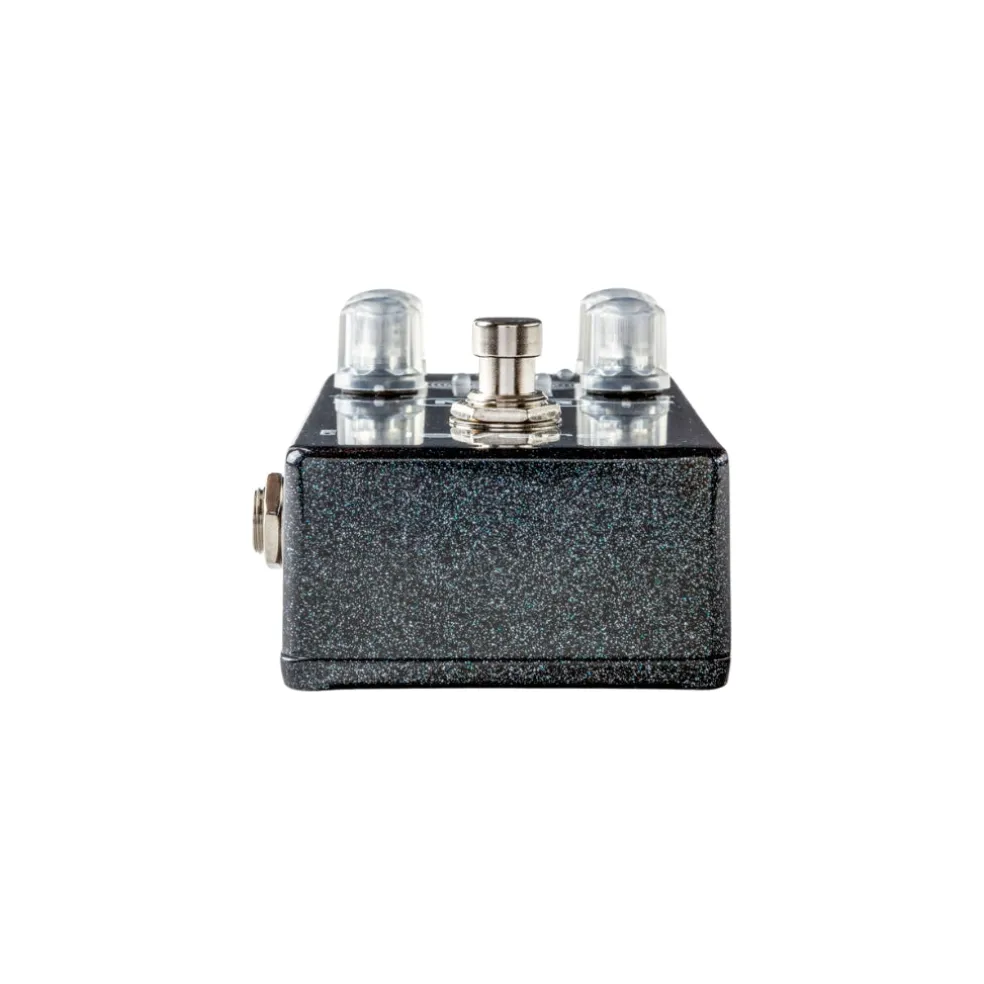

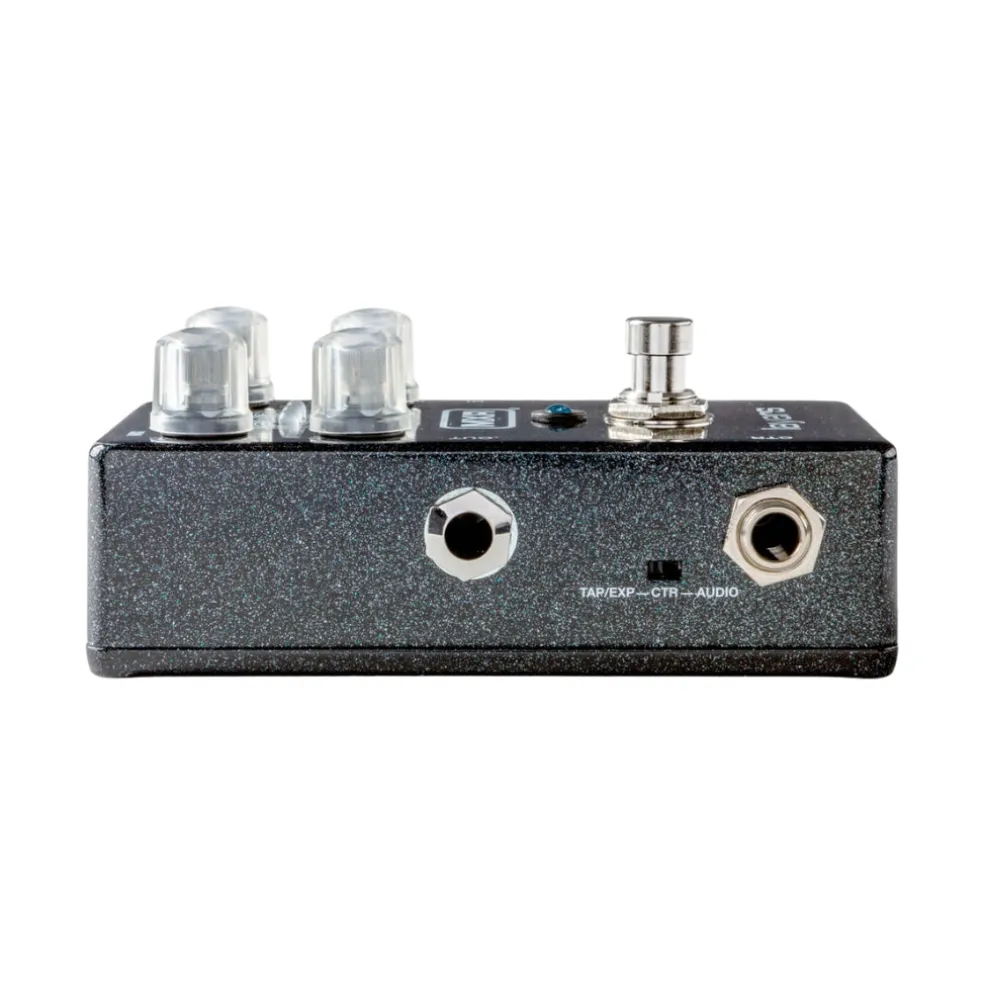

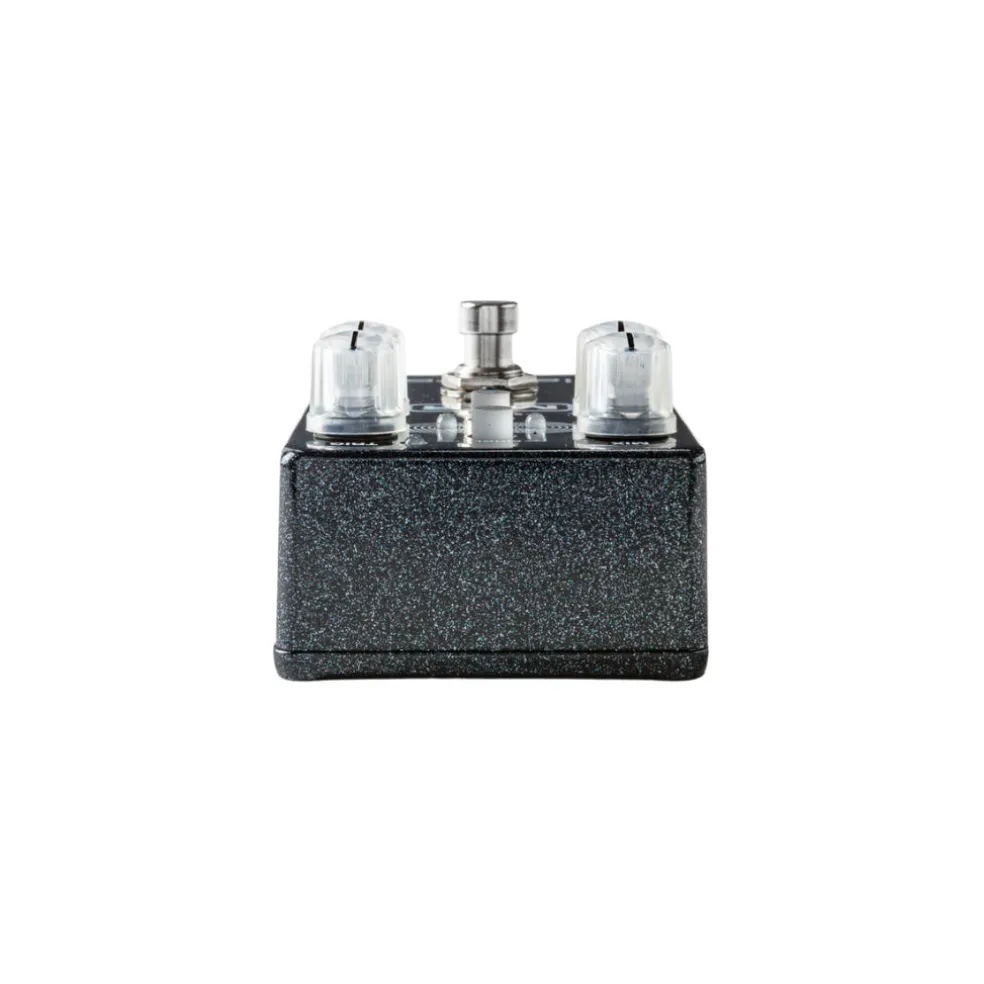

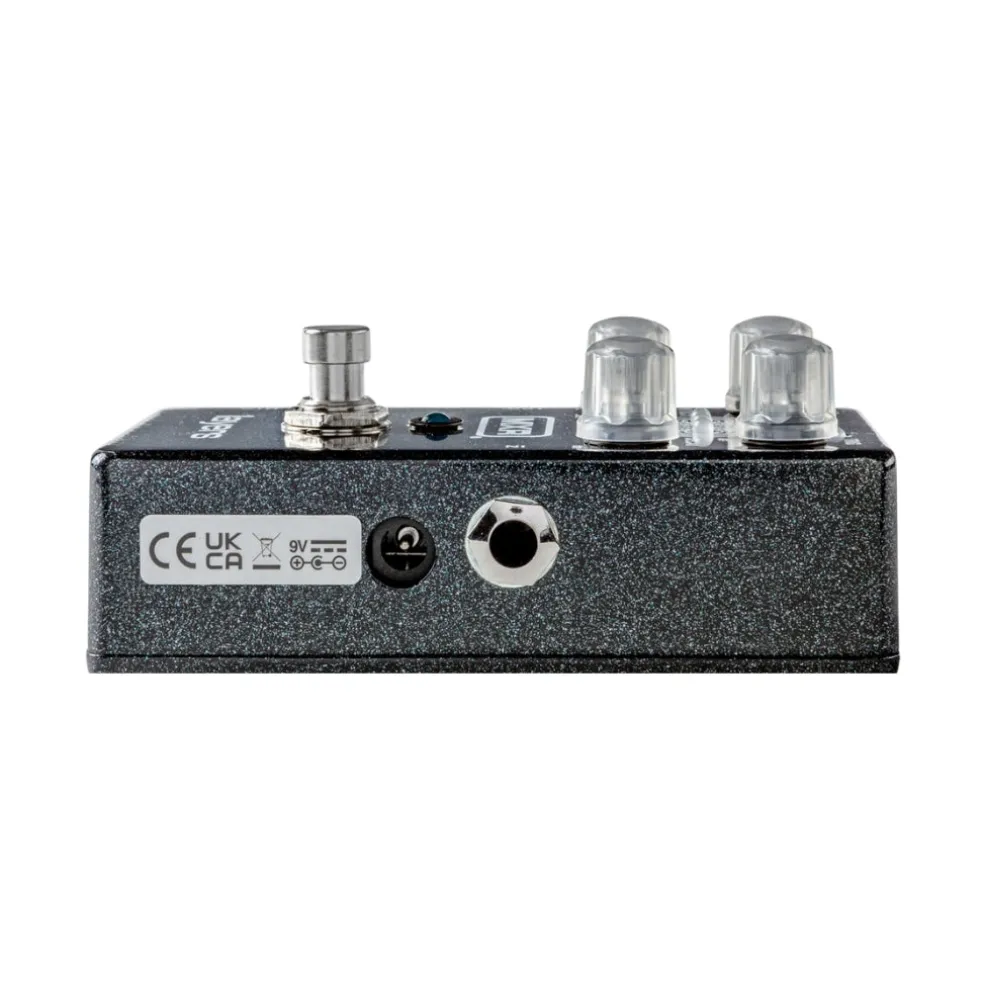

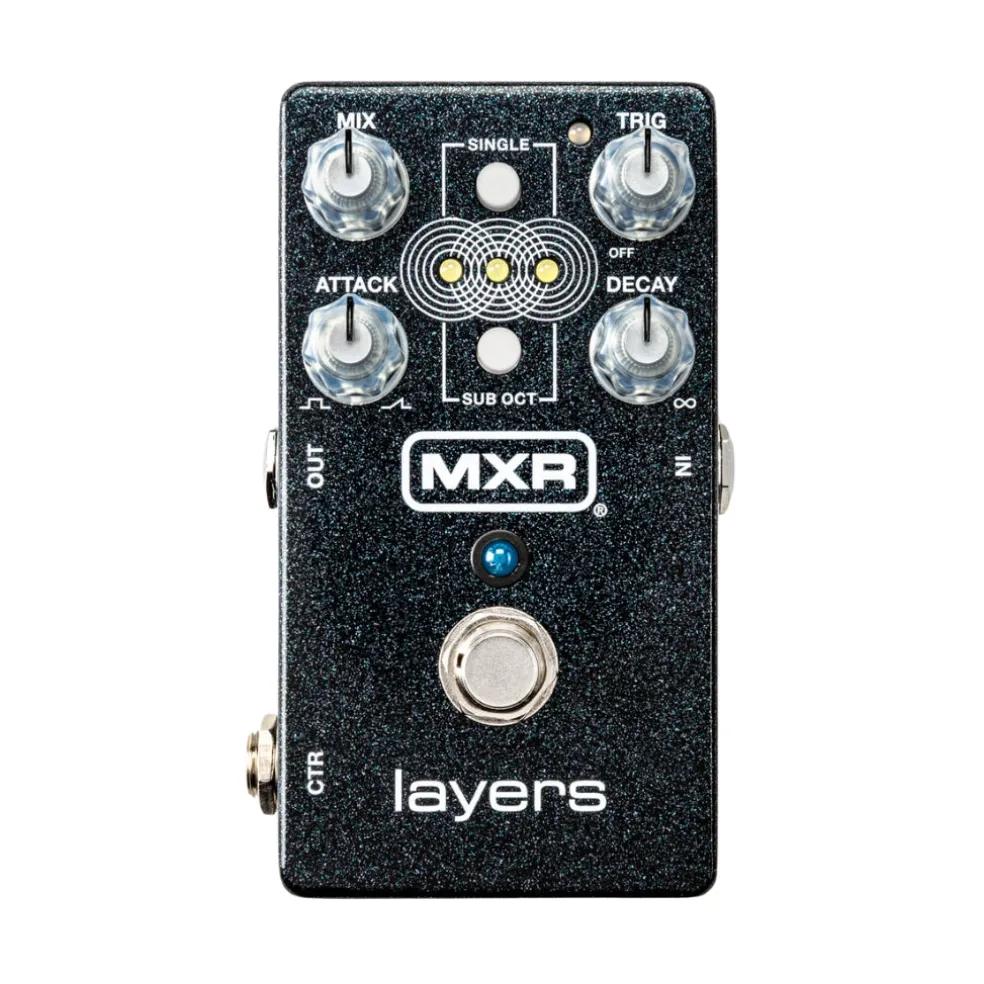

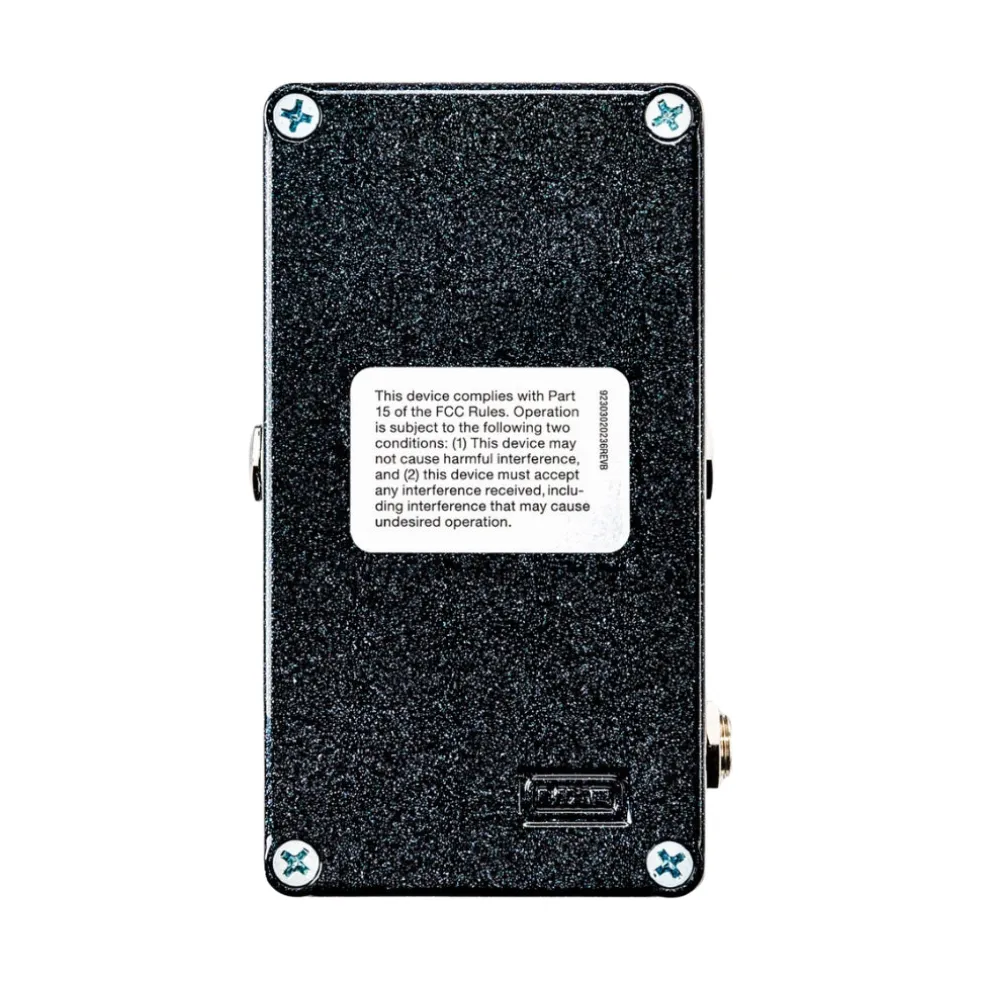

MXR Layers Harmonic Sustain Guitar Effects Pedal

The MXR Layers Pedal blooms with rich, organic sustain that imbues every strum and pluck with resonance and depth. With a versatile suite of controls, this pedal can be as simple or complex as you need. Whether you want to lengthen single notes or generate multi-layered soundscapes rich with ambience, the MXR Layers Pedal will extend the creative potential of your instrument. Pull off chord voicings you never thought possible, compose transcendent melodies, orchestrate harmonic ensembles, create lively stereo pads, and more—all from a standard MXR housing.

Features

• Multitudes of sustain, delay, chorus, reverb, and tremolo varieties collide for a deeply customizable multi-effects pedal
• Selectable stereo and mono operation modes provide extensive stereo-field possibilities across other instruments
• Up to 3 simultaneous layers of sustain and a dedicated sub-octave function ensure vast orchestration potential
• Malleable layering options enable you to split sub-octave designations and single-layer mode for evocative full-spectrum sound stacking
• State-of-the-art circuitry supplies detailed, high-fidelity sustain that faithfully mimics physical string resonance properties for natural layering and intuitive use
• Wide-ranging, detailed attack and delay parameters allow for versatile space shaping and temporal texturizing
• Precise trigger values let you automatically generate and remove layers through the intensity of your pick attack, leading to immensely reactive performance potential
• Flexible footswitch usage lets you painlessly manage layers in any studio, stage, desktop, or tabletop configurations
• External interfacing options via CTR jack lets you blend across 2 setting configurations, control individual parameters, or customize your tactile needs
• Advanced parameter for further expand sonic contouring and texturization opportunities

Specs

• Pedal Type:Sustain Pedal
• Analog/Digital:Digital
• Effects:Layers, Sub-octave, Modulation, Delay Diffusion
• Tap Tempo:Yes, External switch
• Inputs:1 x 1/4″ TRS (mono/stereo)
• Outputs:1 x 1/4″ TRS (mono/stereo)
• Other I/O:1 x 1/4″ TRS (Tap/Expression, Audio out)
• Bypass Switching:Buffered
• Power Source:9V DC power supply (sold separately)
• Power Usage:300mA
