Roland V71 Module for V-Drum 7 Series Electric Drum Kits

 The Centerpiece of the V-Drums 7 Series

The V-Drums 7 Series reimagines the world’s leading electronic drum platform with all-new sounds, easy instrument expansion, and enhanced creative tools. The V71 module is the beating heart of every V-Drums 7 Series kit, featuring a newly recorded on board sound library created in collaboration with Drum Workshop (DW) and support for computer-based drumming with DW Soundworks software. The module also unlocks the advanced capabilities of our latest pads, including the PD-14DSX digital snare. And with built-in wireless connectivity andRoland Cloud Connect on your smartphone, you can instantly change up your sound with a growing library of V-Drums Instrument Expansions, Kit Packs, and more.

Features

• V-Drums 7 Series module, reimagined with an expandable sound engine and support for the latest Roland pad technologies
• Newly recorded multi-sampled sound library created in collaboration with DW
• DW Soundworks software instrument for a seamless transition to computer-based playing (included withRoland Cloud Ultimate membership)
• Wirelessly download V-Drums Instrument Expansions and Kit Packs with the Roland Cloud Connect mobile app
• Six-month Roland Cloud Ultimate membership included

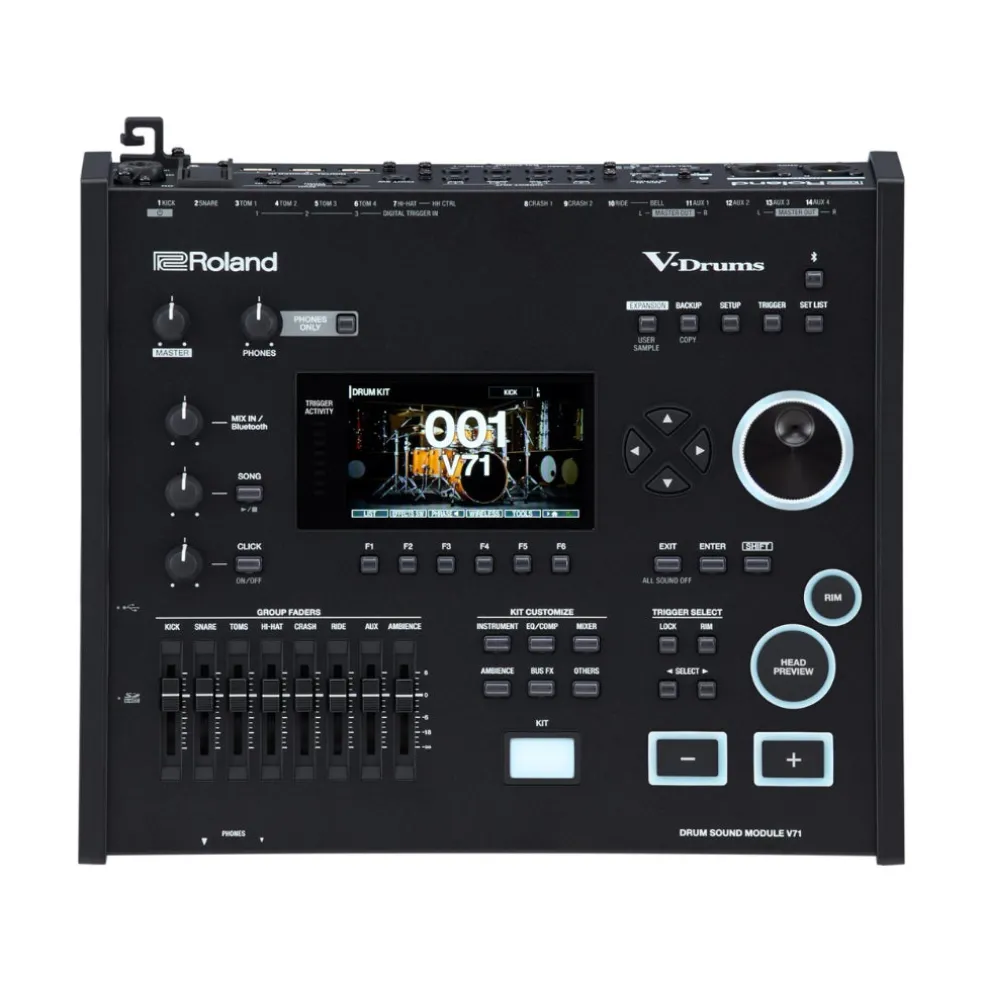

• Large color display, updated user interface, and built-in wireless adapter
• Enhanced V-Edit tools and companion V71 Editor software (macOS/Windows)
• Deep studio-grade processing tools, including EQs, compressors, reverbs, ambience effects, and more
• Add your own sounds with sample import support

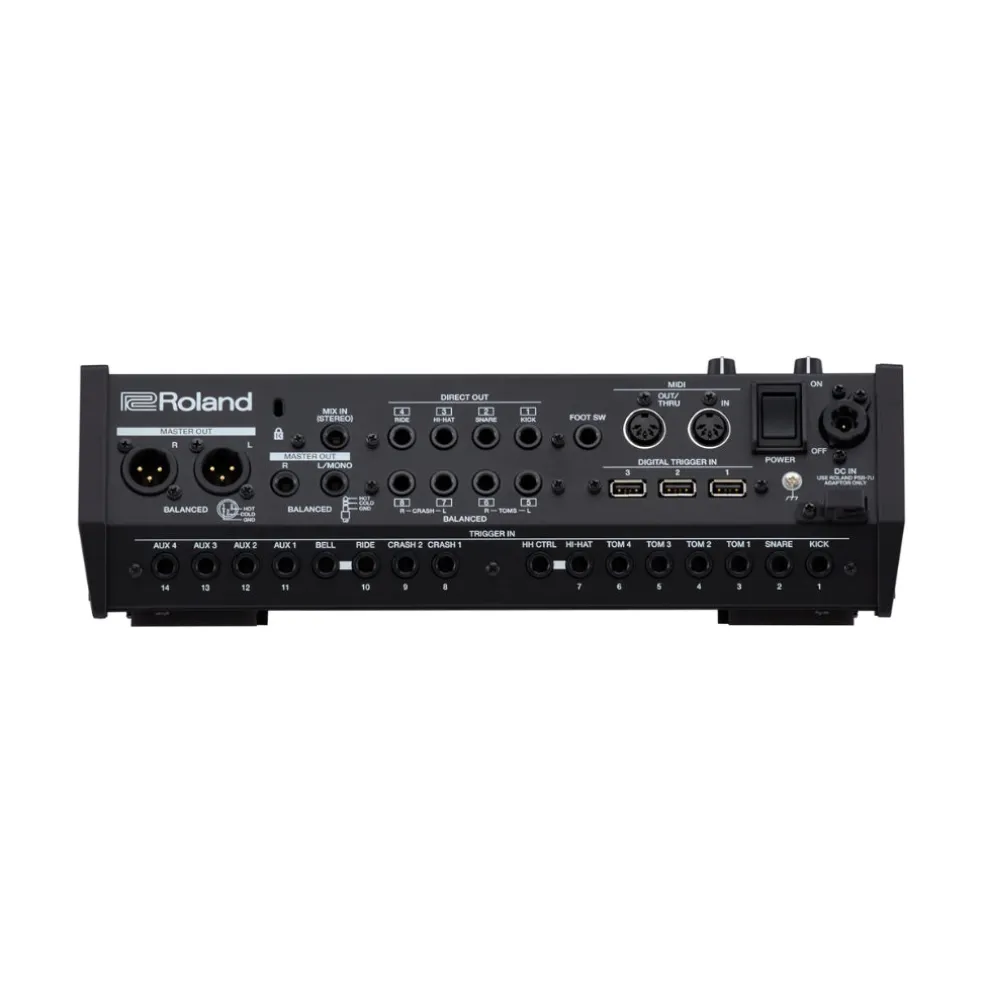

• Balanced main XLR and 1/4-inch outputs, eight balanced 1/4-inch direct audio outputs, three digital trigger inputs, and 14 analog trigger inputs
• Full support for the latest V-Drums 7 Series pads, including the PD-14DSX digital snare, PD-10X/PD-12X V-Pads, and others
• Multi-channel USB interface with 32 discrete audio channels and MIDI
• Bluetooth audio/MIDI for wireless music streaming and MIDI recording with your smartphone
• Stereo aux input for mixing in an external device like an SPD series percussion pad

Specs

Drum Kits

• 200 (Preset: More than 70)

• More than 1000

• Layer Transient: each layer
• Layer Equalizer: each layer
• Pad Equalizer: each pad (by head and rim)
• Pad Compressor: each pad (head and rim common)
• Overhead Mic Simulator
• Room/Reverb/Kit Resonance
• Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
• Bus Reverb
• Master Compressor
• Master Equalizer

• Number of User Sample: Maximum 500 (includes factory preloaded user samples)
• Sound Length (total): 24 minutes in mono, 12 minutes in stereo
• File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

• Audio File: WAV (44.1 kHz, 16/24 bits), MP3

• Recording Method: Realtime
• Maximum Note Storage: approx. 40,000 notes
• Export File Format: WAV (44.1 kHz, 16 bits), SMF

• Recording Method: Realtime
• Maximum length: 60 min (temporary recording: 1 min) (*1)
• File format: WAV (44.1 kHz, 16 bits)

• Graphic color LCD 4.3 inch
• TRIGGER ACTIVITY Indicator (LED)

• 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

• SD Card (SDHC supported)

• TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
• DIGITAL TRIGGER IN port x 3: USB A type
• MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced
• MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
• DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced

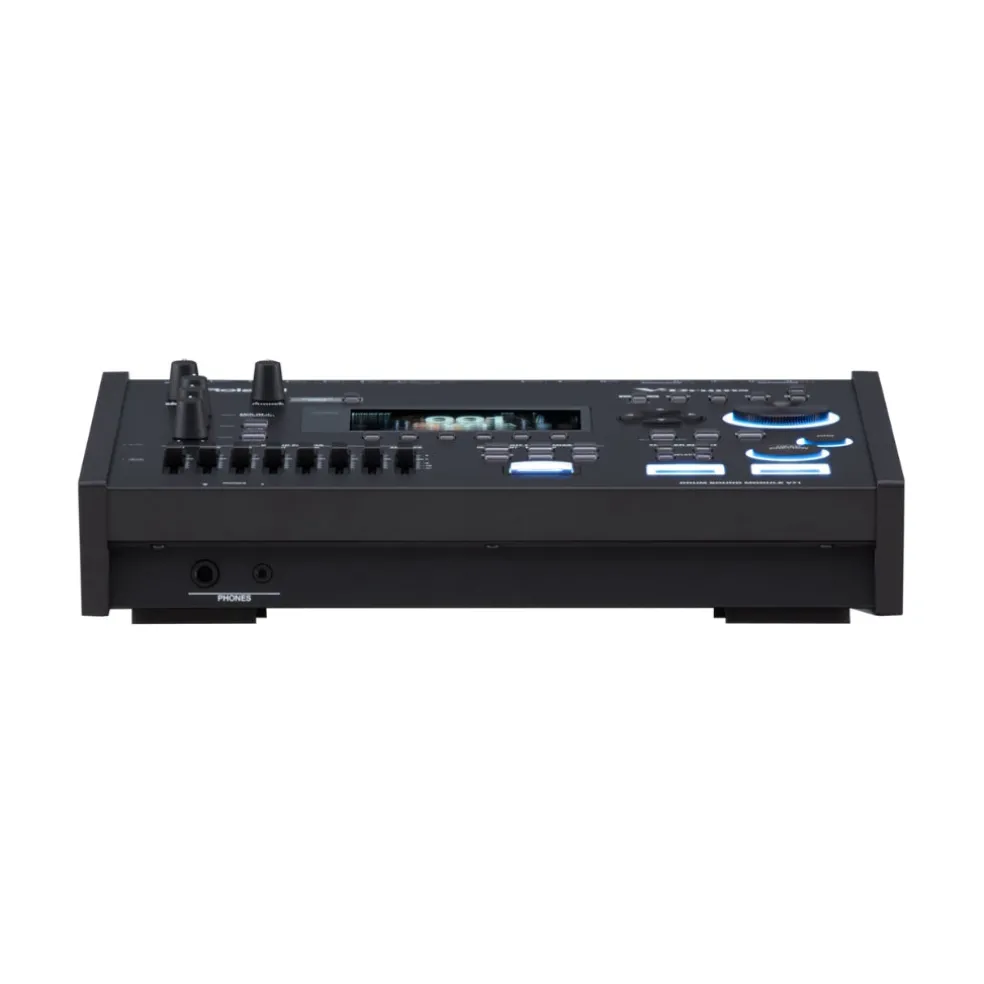

• PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
• MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
• MIDI (IN, OUT/THRU) connectors

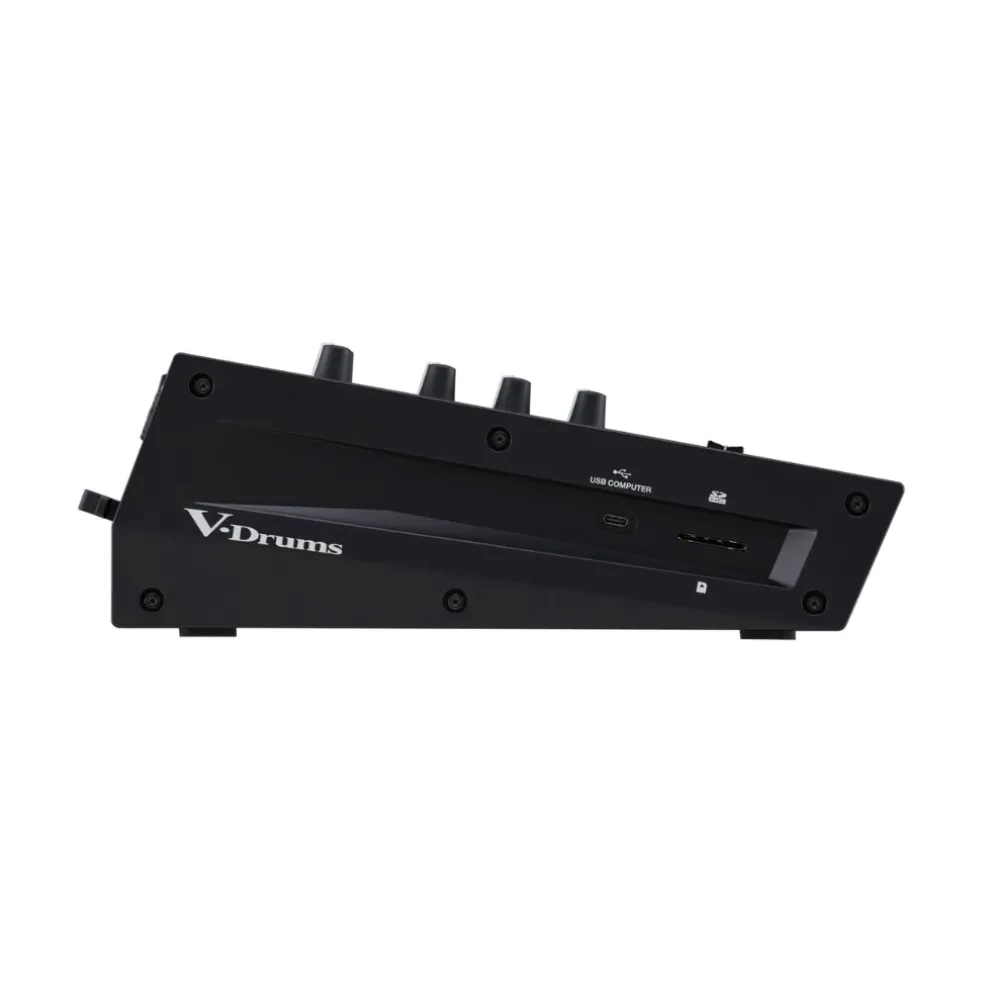

• USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
• FOOT SW jack: 1/4-inch TRS phone type
• DC IN jack

Vendeor Mode

• Sampling Rate (Original): 44.1 kHz
• Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
• Record: 32 channels
• Playback: 32 channels

Generic Mode

• Sampling Rate (Original): 44.1 kHz
• Record: 2 channels
• Playback: 2 channels

• DC 12V (AC Adaptor)

• 2,400 mA

• 0.2 W

• 330 (W) x 308 (D) x 110 (H) mm
• 13 (W) x 12-1/8 (D) x 4-3/8 (H) inches

• 4.2 kg
• 9 lbs 5 oz

• Quick Start
• Roland Cloud Connect Setup Guide
• Roland Cloud Activation Card
• AC Adaptor

• Pad: PD series, PDX series, BT-1
• Cymbal: CY series
• Kick: KD series, KT series
• Hi-Hat: VH series
• Hi-Hat Control Pedal: FD series
• Acoustic Drum Trigger: RT series
• Footswitch: BOSS FS-5U, FS-6
• Personal Drum Monitor: PM series
