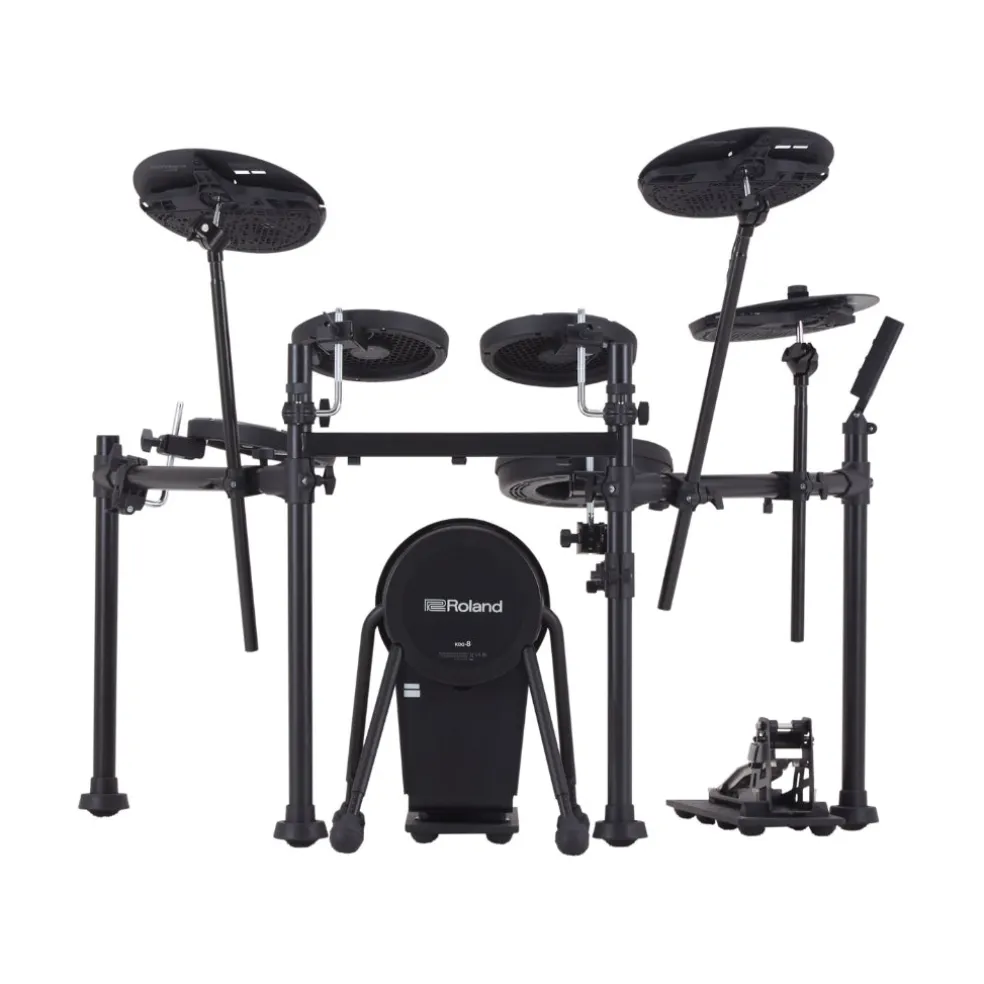

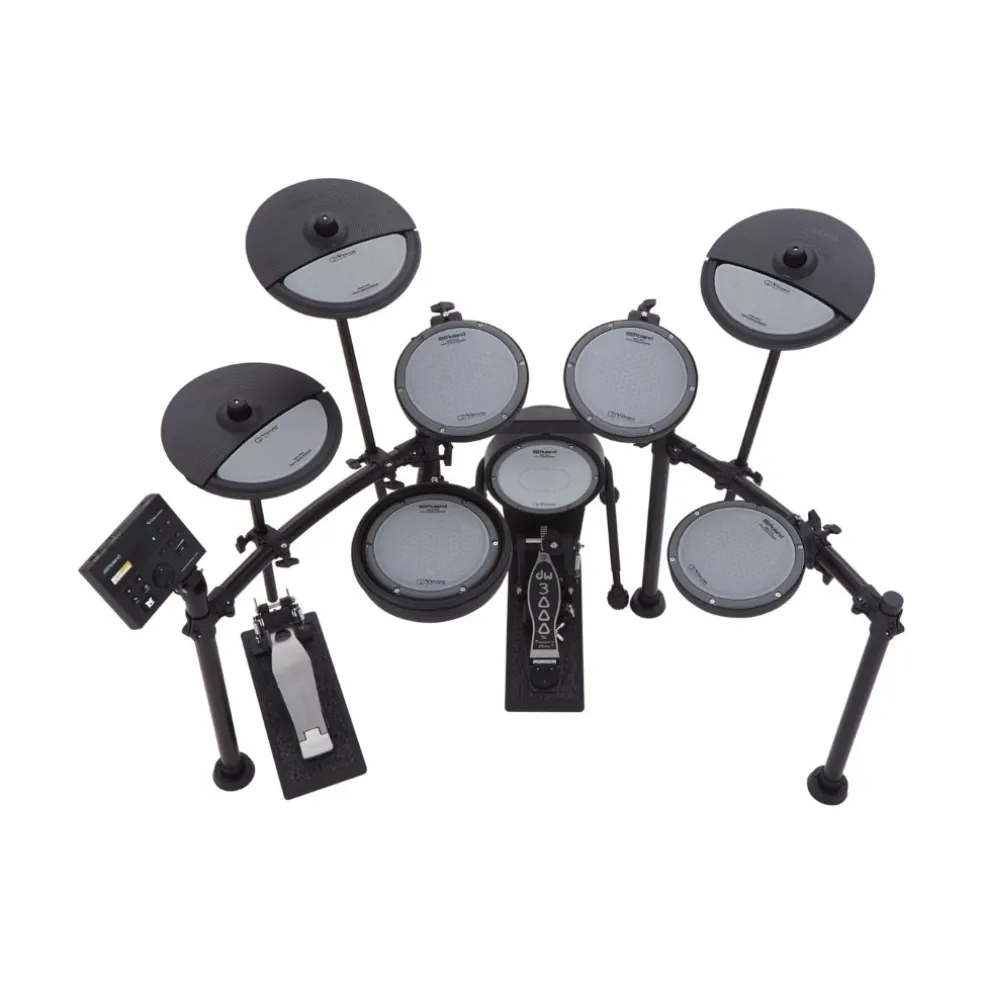

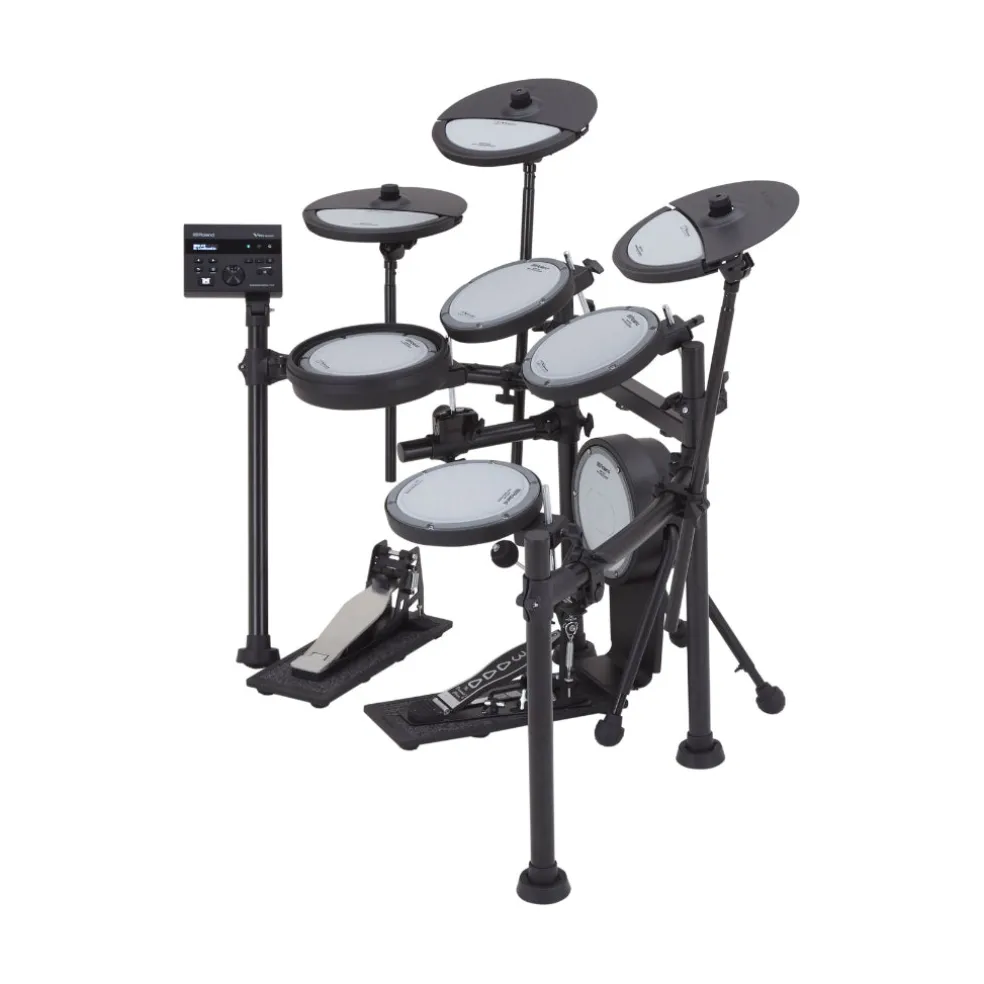

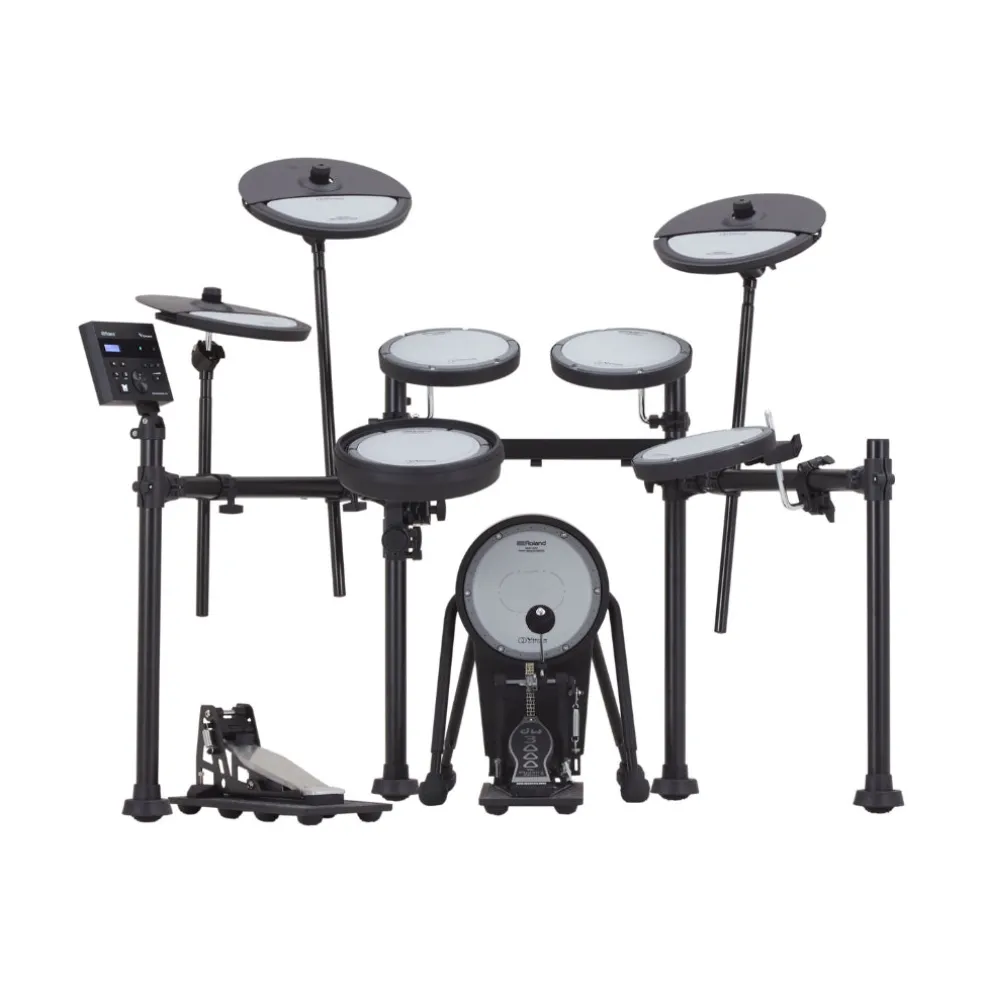

Roland VQD106S Quiet Electronic Drum Kit with TD-07

The world’s quietest drum kit.

When practicing at home, drummers love to dig in and immerse themselves in the experience. But those around the drummer just want the noise to stop. V-Drums Quiet Design makes everyone happy, providing the lowest in-home playing noise in the history of drums. Our ground breaking technologies make the impossible possible, allowing you to play without restraint at any time—while others who can’t see you will never know you’re drumming at all.

Features

• Revolutionary electronic drum kit with ultra-quiet noise performance for home playing
• Up to 75 percent reduction in playing noise compared with a conventional V-Drums kit
• A complete system with specially engineered pads, pedal bases, and stand
• Includes the TD-07 module and connection cables
• PDQ-8S snare pad with 8-inch playing surface, 10-inch rim, and independent head/rim triggering
• Three PDQ-8 single-trigger tom pads with 8-inch playing surfaces
• Two12-inch CYQ-12 cymbal pads for crash and ride with bow/edge triggering and choke support
• CYQ-12 hi-hat pad and low-noise FD-9 hi-hat control pedal
• KDQ-8 kick pad with 8-inch playing surface and support for single and double kick pedals
• KDB-Q quiet kick beater
• Noise-isolating NEQ-K and NEQ-H bases for kick and hi-hat pedals
• Integrated Bluetooth lets you wirelessly stream sound from smartphones, tablets, and other Bluetooth devices and send MIDI data to music apps
• Advanced built-in metronome with the ability to adjust time signature, note value, and click tone
• Onboard Coach function provides interactive tools to build timing skills and track progress
• USB for recording audio and MIDI data to computer music software
• Free lessons with Melodics™ for V-Drums software(macOS and Windows)
• Drum throne and kick pedal not included (available separately with the DAP-3X accessory package)
• VQD106PADS model available without the module and connection cables

*Kick pedal and drum throne not included (sold separately).



Specs

Kit configuration (*1)

• Kick: KDQ-8
• Snare: PDQ-8S
• Hi-hat: CYQ-12
• Hi-hat control pedal: FD-9
• Tom: PDQ-8 x 3 *2
• Crash: CYQ-12
• Ride: CYQ-12
• Pedal Base: NEQ-K (for kick pedal), NEQ-H (for Hi-hat pedal)
• Drum stand: Four-post type rack stand

• 50 (Preset: over 20)

• 143

• Pad Equalizer: each pad
• Overhead Mic Simulator
• Room
• Multi-Effects: 1 system, 30 types

• Time check (easy)
• Time check (hard)
• Quiet count
• Auto up/down
• Change-up

• Tempo (20–260)
• Rhythm type (5 types)
• Sounds (15 types)

• Supported standards: Bluetooth Ver 4.2
• Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
• Codec: SBC (Support to the content protection of the SCMS-T method)

• 16 characters x 2 lines LCD (with backlight)

• OUTPUT/PHONES jack: Stereo miniature phone type
• MIX IN jack: Stereo miniature phone type
• USB COMPUTER port: USB B type
• TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

• Speed: Hi-speed USB
• Driver mode: Generic, Vender
• Protocol: USB MIDI, USB Audio *3

• Sampling Rate (original): 44.1 kHz
• Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
• Record: 2 channels
• Playback: 2 channels

• AC adaptor (DC 12 V)

• 250 mA

• 1,300 (W) x 1,200 (D) x 1,200 (H) mm
• 51-3/16 (W) x 47-1/4 (D) x 47-1/4 (H) inches
• (including sound module, kick pad, kick pedal and drum throne)

• 29.8 kg / 65 lbs 12 oz

• Setup Guide
• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY”
• AC adaptor
• Special connection cable

• Additional crash cymbal (Crash2): CYQ-12, MDY-Standard *4
• Additional pedal base for twin kick pedal: NEQ-K
• Additional beater for twin pedal: KDB-Q
• Personal drum monitor: PM series
• V-Drums accessory package: DAP-3X
• V-Drums mat: TDM series

*1 Kick pedal and drum throne are not included.

*2 Unsupported for using a rim-shot.

*3 USB Audio is required the using vender driver and switched vender mode.

*4 MDY-Standard is additionally required for mounting a CYQ-12 on the stand.
