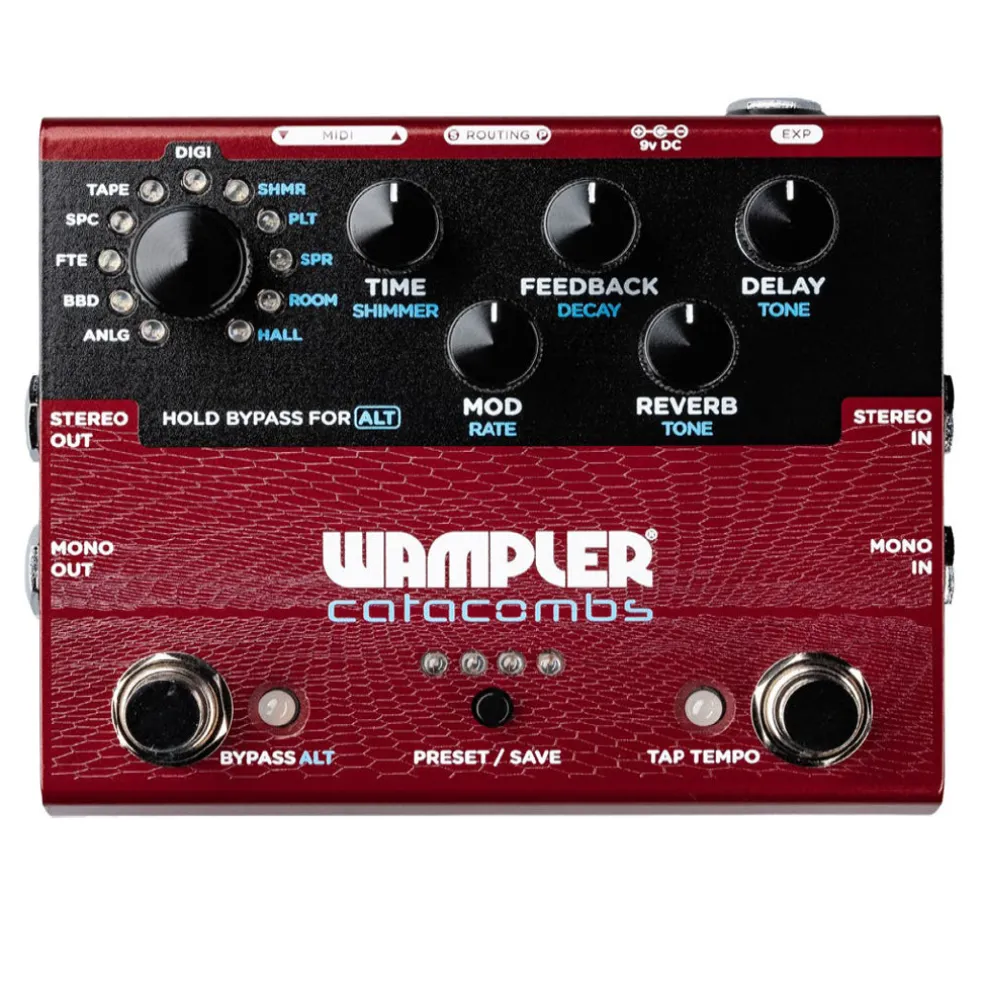

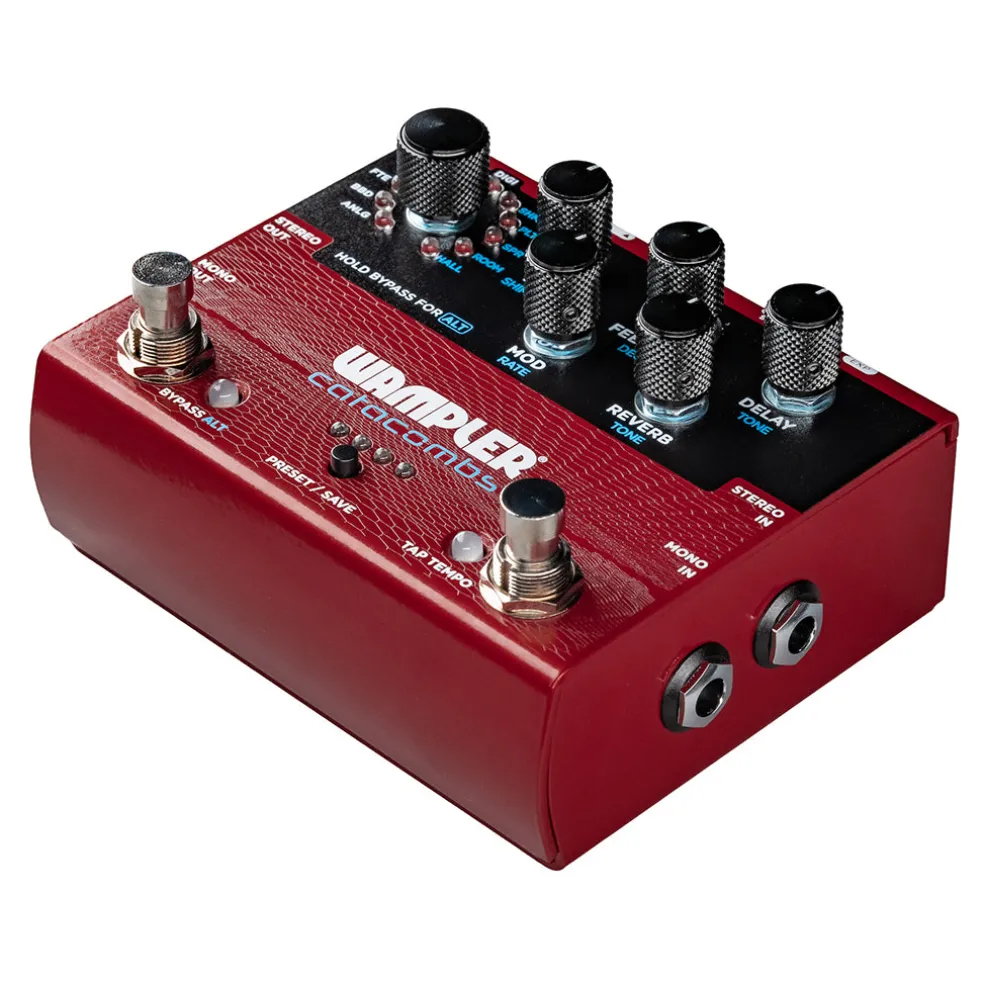

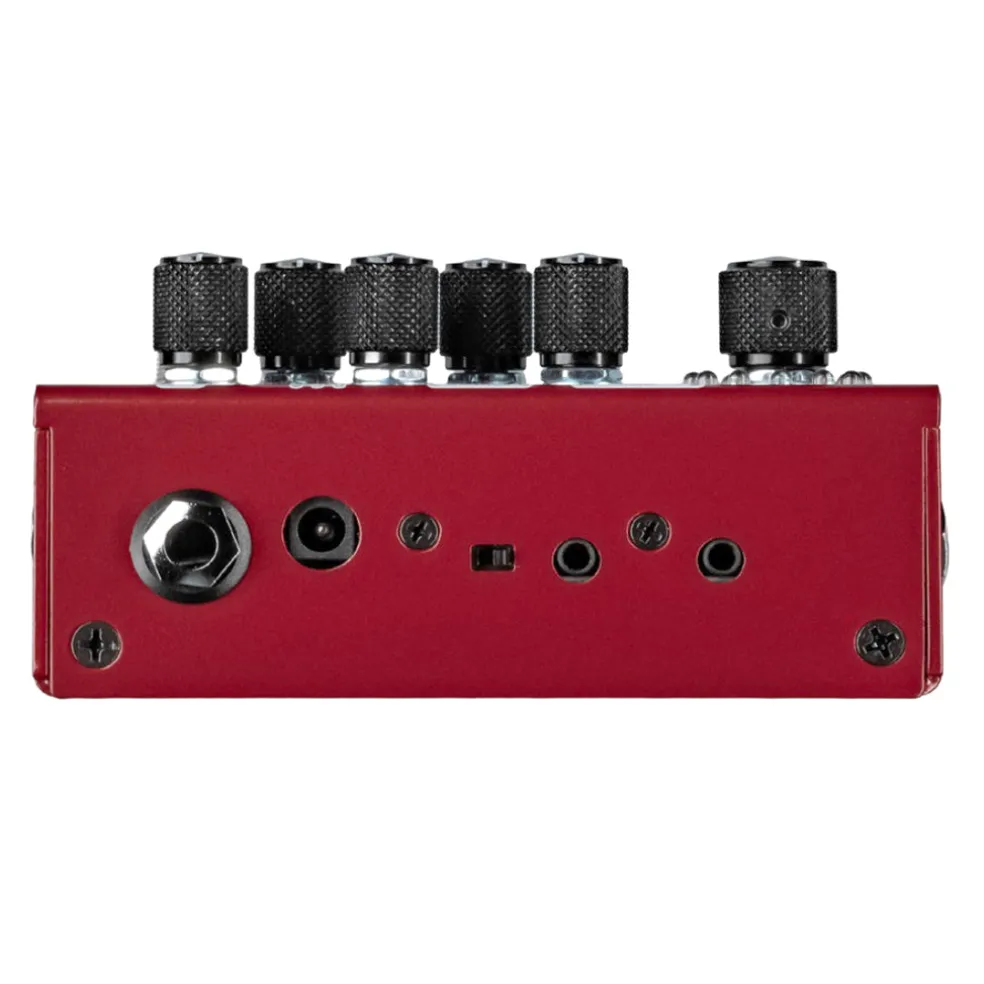

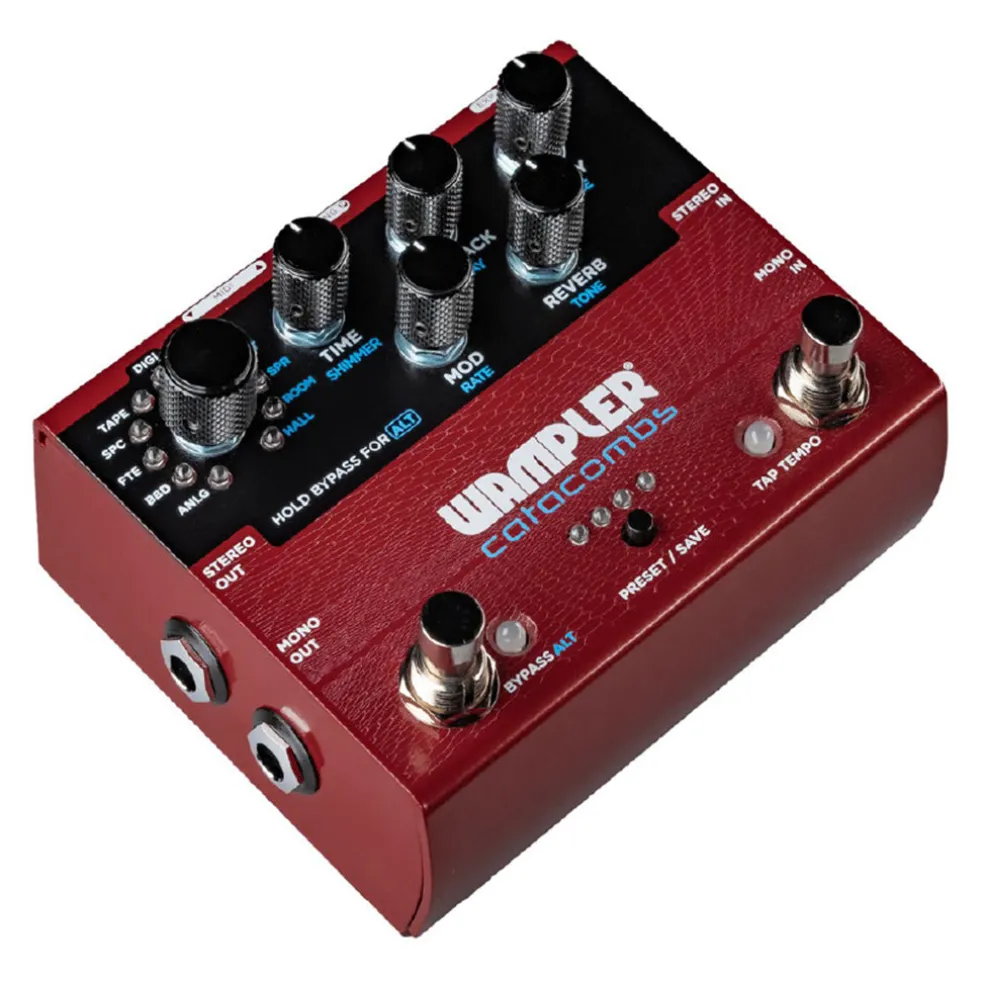

Wampler Catacombs Reverb and Delay Pedal

The Wampler Catacombs is a programmable, all-in-one delay and reverb pedal that redefines your relationship with time-based effects.

Brian Wampler’s lifelong pursuit of the perfect guitar tone led him to design the Catacombs, a pedal that balances versatility and ease of use. Musicians often struggle with managing complex sounds on limited pedalboard space, but the Catacombs solves this by offering 11 popular delay and reverb effects in one intuitive package. Whether you want classic digital delays or expansive reverbs, the Catacombs delivers without compromise. The pedal provides tap-tempo control and allows you to save up to eight presets for instant access. Its flexibility extends to running effects in stereo, parallel, or series configurations.

Additionally, the Catacombs comes with a free software plugin version for your DAW, available in AAX, AU, and VST3 formats for Mac and PC.

The delay section includes six distinctive programs, from warm analog delays to the modulated tones of tape echoes. Meanwhile, the reverb side features five iconic settings, including lush halls, vintage plates, and shimmering ambiances. Designed for versatility and ease, the Catacombs puts a studio’s worth of effects at your feet.

Features

• Studio quality conversion 48 kHz sampling rate with 24-bit audio
• Full 20Hz to 20kHz frequency response
• Studio-quality vintage and modern effects – 6 Delays and 5 Reverbs designed andrealised in-house at Wampler
• Simple user interface making your sound design instantaneous
• All parameters controllable via an outboard expression pedal
• 8 onboard preset locations to save your favorite patches, 128 total via MIDI
• Full MIDI control with CC and PC commands and MIDI clock compatibility
• True Stereo or Mono I/O
• Complete set of AAX, AU, and VST3 plugins FREE when pedal registered online
• Pedalboard friendly enclosure with minimal footprint
  Power draw – 9V DC center pin negative, external supply only: 130mA at 9VDimensions : 4.5” x 3.75” x 2.25” (114 x 95 x 56mm) Weight: 2 pounds (910g)
• Includes Wampler’s limited 5-year warranty
• Designed and Built in the USA
