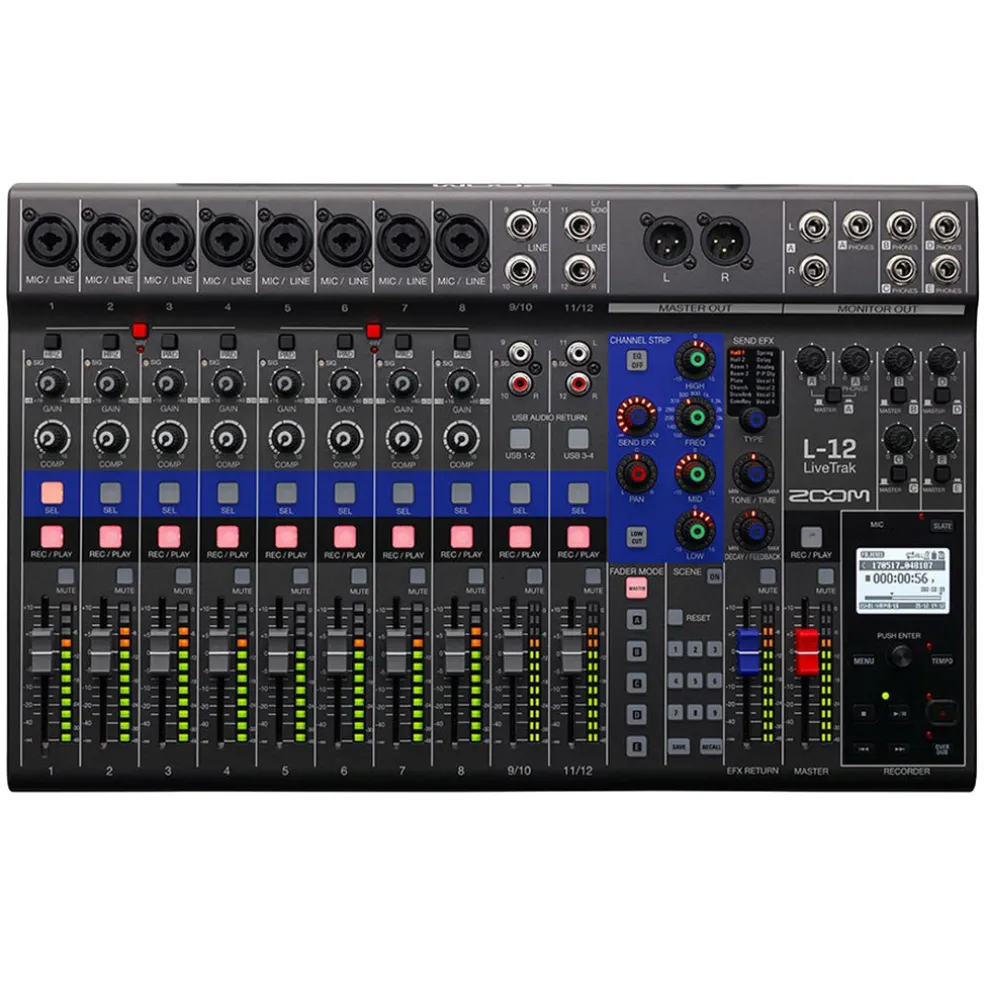

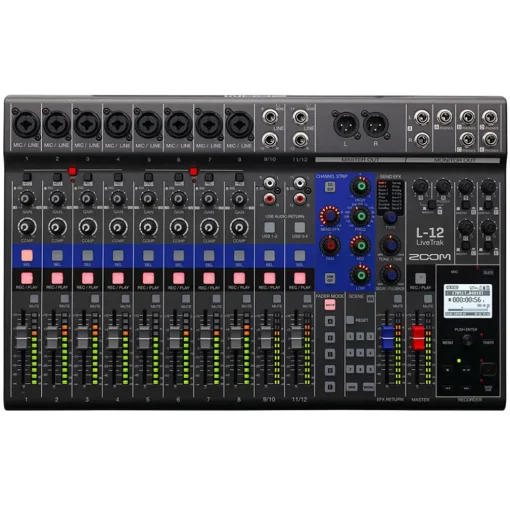

Zoom Livetrak L-12 Digital Mixer

With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD cardwhile simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*

Features

• 12-channel digital mixer (8 mono/2 stereo)
• 14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
• 12-track 24-bit/96kHz recording directly to an SD card
• Record up to 48kHz to a computer and an SD card simultaneously
• Create customizable, savable headphone mixes for up to 5 band members
• Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
• 8 combo jacks accommodate both XLR and 1/4 connectors
• 8 great-sounding mic preamps with phantom power and +60dB of gain
• Channels 1–2 offer hi-Z inputs for your electric guitar or bass
• Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
• Each channel features a 3-band mid-parametric EQ and 16 built-in effects
• Channels 1–8 include a dedicated compressor for controlling dynamics
• Channels 3–8 have a -26dB pad for capturing loud sources
• Clear 12-segment LED metering for keeping an eye on your levels
• Save up to 9 scenes and recall your custom settings automatically
• Record automatically when the master fader detects a certain dB level
• Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
• Built-in slate mic for recording comments or talk back
• Onboard metronome for keeping the band in sync



Specs

• Type: Digital Mixer with USB Interface
• Channels: 12
• Inputs – Mic Preamps: 8 x XLR-1/4 combo (mic/line)
• Phantom Power: 8 channels (1-4,5-8)
• Inputs – Line: 4 x 1/4 (2 x stereo channels), 2 x Dual RCA Stereo
• Inputs – Other: 2 x XLR-1/4 combo (Hi-Z)
• Outputs – Main: 2 x XLR (master), 2 x 1/4 (monitor)
• Aux Sends: 5 x Monitor
• Busses/Groups: 1 x FX
• Talkback: Built-in slate mic
• Remote: 1 x 1/4 (footswitch control)
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB (14 x 4)
• Headphones: 5 x 1/4 TRS (headphones/monitor)
• Faders: 10 x channel faders, 1 x EFX return, 1 x Master
• A/D Resolution: Up to 24-bit/96kHz
• EQ Bands: 3-band Mid-parametric EQ
• Effects: 16 effect varations; Reverb, Delay
• Signal Processing: Compression
• Features: Save up to 9 scenes, Metronome, Powered headphone outs
• Transport Controls: Yes
• Screen: LCD screen
• Storage: SD/SDHC/SDXC card slot
• Power Source: 12V DC power supply (included)
• Height: 2.78
• Depth: 11.1
• Width: 17.5
• Weight: 5.58 lbs.
