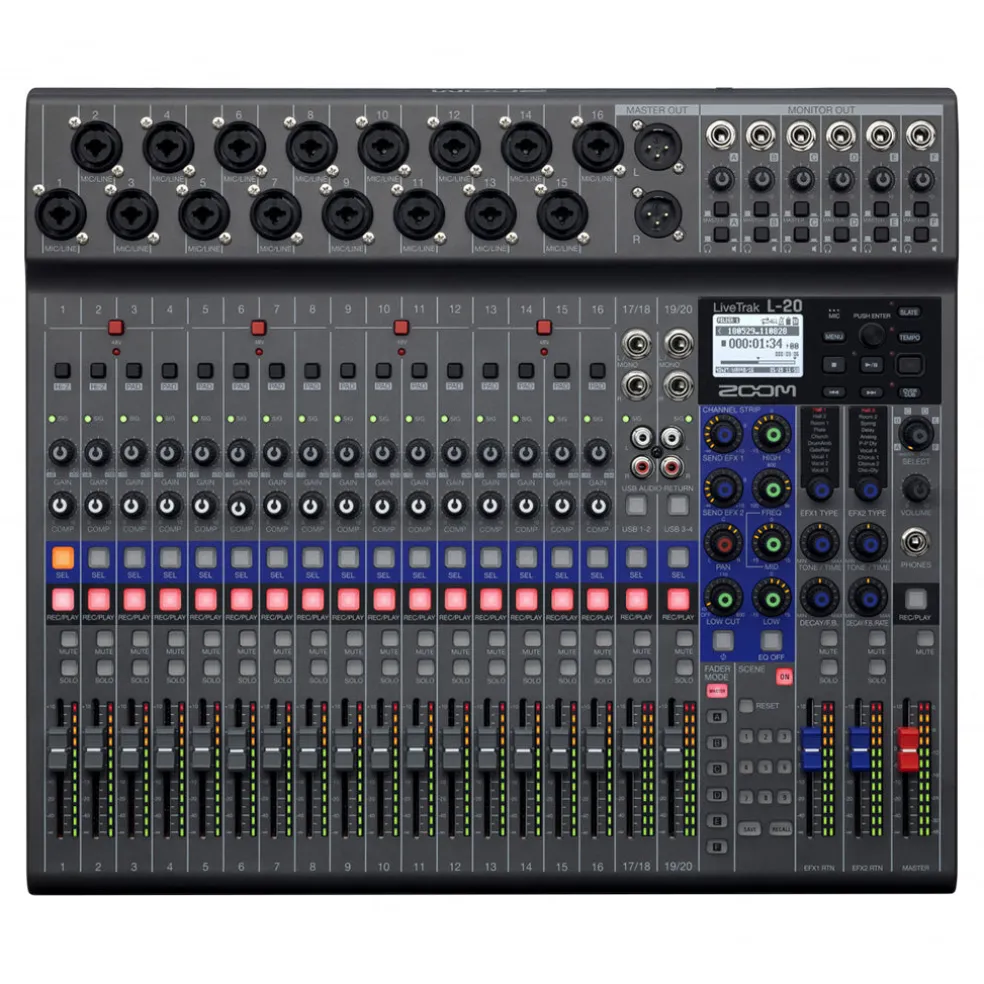

Zoom Livetrak L-20

The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.

The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.

Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.

With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.

The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.

Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.*

Features

• 20-channel digital mixer (16 mono/2 stereo)
• 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning to USB Camera Adapter is required for iOS)
• 22-track 24-bit/96kHz recording directly to an SD card
• Record up to 48kHz to a computer and an SD card simultaneously
• Create customizable, savable headphone mixes for up to 6 band members
• Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing
• 16 combo jacks accommodate both XLR and 1/4 connectors
• 16 great-sounding mic preamps with phantom power and +60dB of gain
• Channels 1 and 2 offer hi-Z inputs for your electric guitar or bass
• Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
• Each channel features a 3-band mid-parametric EQ and 20 built-in effects
• Channels 1–16 include a dedicated compressor for controlling dynamics
• Channels 3–16 have a -26dB Pad for capturing loud sources
• Clear 12-segment LED metering for keeping an eye on your levels
• Save up to 9 scenes and recall your custom settings automatically
• Record automatically when the Master fader detects a certain dB level
• Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
• Built-in slate mic for recording comments or talkback
• Onboard metronome for keeping the band in sync



Specs

• Type: Digital Mixer with USB Interface

• Channels: 20

• Inputs – Mic Preamps: 16 x XLR-1/4 combo (mic/line)

• Phantom Power: Yes

• Inputs – Line: 4 x 1/4 (2 x stereo channels), 2 x Dual RCA Stereo

• Inputs – Other: 2 x XLR-1/4 combo (Hi-Z)

• Outputs – Main: 2 x XLR (master)

• Outputs – Other: 6 x 1/4 (monitor)

• Busses/Groups: 2 x FX Buses

• Talkback: Built-in Slate Mic

• Remote: 1 x 1/4 (footswitch control), 1 x Remote Port (BTA-1 adapter)

• USB: 1 x Type A, 1 x Type B

• Computer Connectivity: USB (22 x 4)

• Headphones: 1 x 1/4 TRS

• Faders: 18 x channel faders, 2 efx faders, 1 x master

• A/D Resolution: Up to 24-bit/96kHz

• EQ Bands: 3-band Mid-parametric EQ

• Effects: 20 effect variations ; Reverb, Delay, Chorus

• Signal Processing: Compression (16 channels)

• Features: 22 recording tracks, 20 playback tracks, 9 scene recall settings

• Transport Controls: Yes

• Screen: LCD screen

• Storage: SDHC/SDXC Card Slot

• Software: Remote Mixer App (iPad, BTA-1 bluetooth adapter required)

• Rackmountable: Yes (RKL-12 kit sold separately)

• Power Source: 12V DC 2A power supply (included)

• Height: 3.25

• Depth: 15.3

• Width: 17.5

• Weight: 8.1 lbs.
